For model Venetia Ch= Telefunken Orchestra 53, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
Herstellerprospekt 1953

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC81 EF41 ECH81 EF41 EM35 EF41 EABC80 EL12
Main principle Superhet with RF-stage; ZF/IF 452/10700 kHz
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-240 Volt

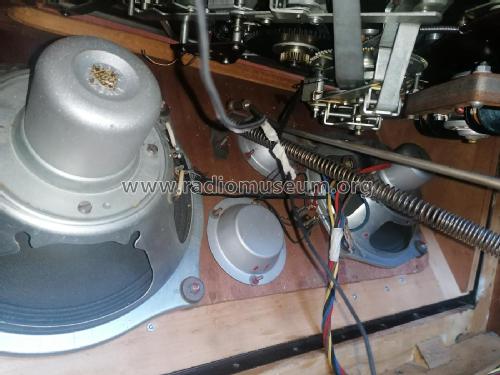

Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Venetia Ch= Telefunken Orchestra 53 - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1370 x 930 x 500 mm / 53.9 x 36.6 x 19.7 inch
Notes

Rundfunk-Chassis = Telefunken Orchestra 53
Phono-Chassis = Dual 1002E 10fach Wechsler mit 3 Geschwindigkeiten
Tonband-Chassis = AEG Magnetophon KL25

Vorstufensuper (1. EF41, abgestimmt!) für alle AM-Bereiche, auch für Ferritantenne.
3-fach-Drehko. UKW-Abstimmung mittels Variometer.

Druckknopfbedienung für Tonbandfach-Deckel. Elektrischer automatische Plattenspieler-Auszug. Beleuchtung. Indirekt beleuchtete Hausbar.

Mentioned in -- Original prospect or advert

Model page created by Matthias Fassbender. See "Data change" for further contributors.
