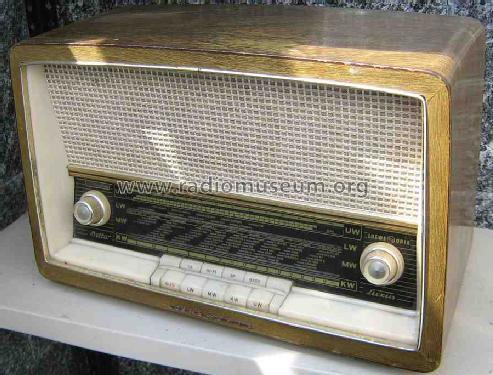

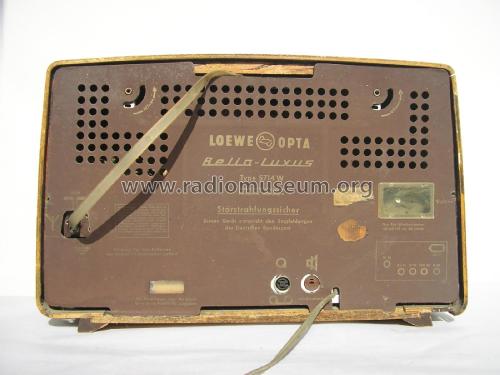

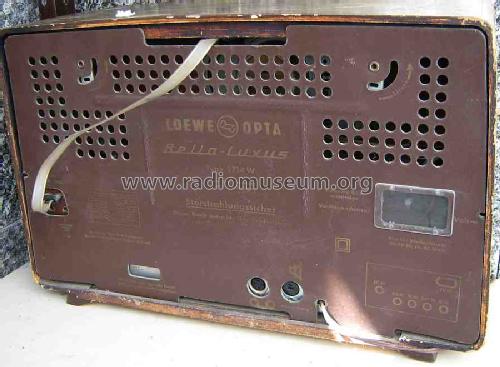

Bella-Luxus 5714W ab Nr. 237-2666 (Ausf. B)

Loewe-(Opta); Deutschland

  • Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23424
    • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Bella-Luxus 5714W [ab Nr. 237-2666 ] - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 440 x 275 x 210 mm / 17.3 x 10.8 x 8.3 inch
  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Price in first year of sale
  • 236.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model Bella-Luxus is part of the collections of the following members.

 Forum

Forum contributions about this model: Loewe-Opta;: Bella-Luxus 5714W

Threads: 1 | Posts: 7

Hallo Radiofreunde,



hier im RM.org ist der Schaltplan für die Bella 5714W Ausgabe B hinterlegt.

Gibt es, und falls ja, hat diesen ein Mitglied im Besitz, denn auch die Ausgabe A?

Hintergrund meiner Frage ist, dass meine Bella eine abweichende Bestückung beispielsweise auf der Platine BV611 aufweist.

Bei mir sind z.B. vier EROFOL II zu je 0,1µ, 0,047µ, 0,022µ, 2200p verbaut, im Plan hinterlegt sind aber je 2 x 0,047µ, und auch die Widerstandsbestückung ist unterschiedlich.



Danke und Grüße in die Runde



Rüdiger Meier





Rüdiger Meier, 05.Feb.19

Weitere Posts (7) zu diesem Thema.
