For model Globus 1784W 3 Lautsprecher, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner

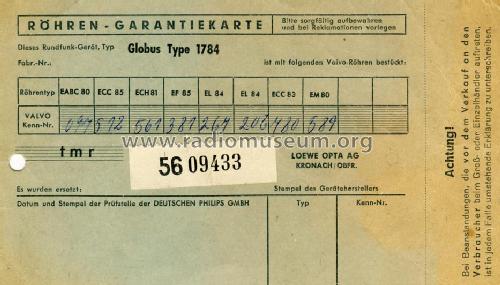

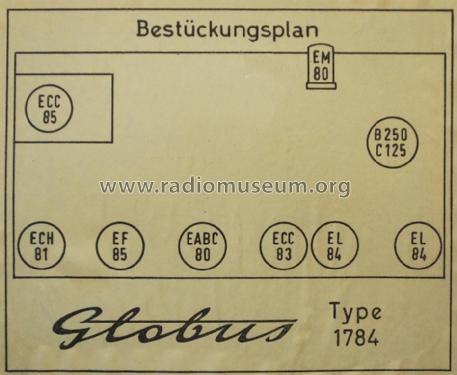

Valves / Tubes 8: ECC85 ECH81 EF85 EABC80 EM80 ECC83 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 150, 220 Volt
Loudspeaker 3 Loudspeakers
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Globus 1784W [3 Lautsprecher] - Loewe-Opta; Deutschland
Material Wooden case

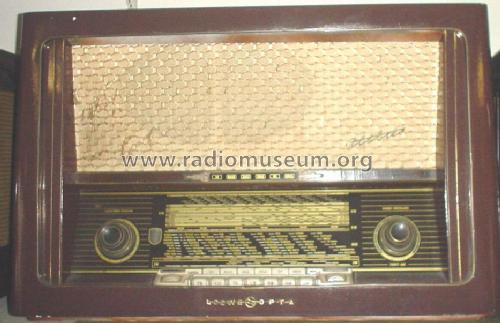

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 665 x 420 x 315 mm / 26.2 x 16.5 x 12.4 inch
Notes Bandbreite schaltbar; ZF auch 464 kHz; drehbare Ferritantenne. Sowohl im Katalog als auch im Schaltbild sind 3 Lautsprecher angegeben. Gerätebilder zeigen jedoch 4 Lautsprecher. Siehe Variante mit 4 Lautsprechern.
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 468.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
