For model Globus 53 1853Wc, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 ECH81 EF41 EF85 EM4 EABC80 EL12
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Globus 53 1853Wc - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 578 x 373 x 280 mm / 22.8 x 14.7 x 11 inch
Notes Kurzwellenlupe. Siehe auch Modelle Wb, We etc.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)

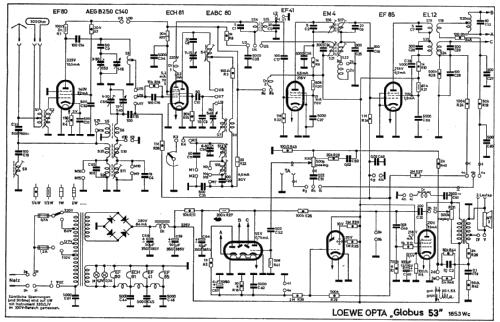

Literature/Schematics (1) -- Original-techn. papers.
