Hellas Plastik 552W/P

Hellas Plastik 552W/P; Loewe-Opta; (ID = 56412) Radio

Hellas Plastik 552W/P; Loewe-Opta; (ID = 125378) Radio
Hellas Plastik 552W/P; Loewe-Opta; (ID = 97212) Radio Hellas Plastik 552W/P; Loewe-Opta; (ID = 97213) Radio
Hellas Plastik 552W/P; Loewe-Opta; (ID = 97214) Radio Hellas Plastik 552W/P; Loewe-Opta; (ID = 48694) Radio
Hellas Plastik 552W/P; Loewe-Opta; (ID = 67466) Radio Hellas Plastik 552W/P; Loewe-Opta; (ID = 125734) Radio
Hellas Plastik 552W/P; Loewe-Opta; (ID = 125735) Radio Hellas Plastik 552W/P; Loewe-Opta; (ID = 210662) Radio
Hellas Plastik 552W/P; Loewe-Opta; (ID = 215558) Radio Hellas Plastik 552W/P; Loewe-Opta; (ID = 215559) Radio
Use red slider bar for more.

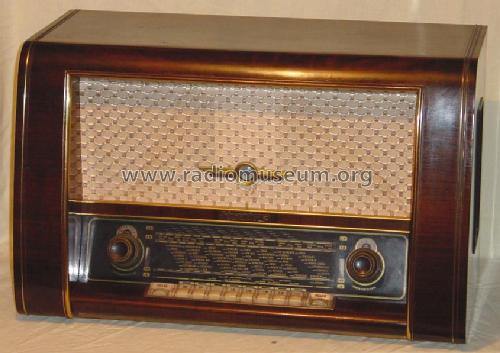

Hellas Plastik 552W/P; Loewe-Opta; (ID = 97212) Radio
Loewe-Opta;: Hellas Plastik 552W/P [Radio] ID = 97212 845x597
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hellas Plastik 552W/P, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM34 EABC80 ECC83 EL84 EL84
Semiconductors (the count is only for transistors) E250C120
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 11 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Hellas Plastik 552W/P - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 400 x 315 mm / 25.2 x 15.7 x 12.4 inch
Notes Plastik (P) bedeutet 3D-Klang. KW - Lupe. Bandbreite regelbar. Ferritantenne drehbar.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 438.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1954/55 / Radiokatalog Band 1, Ernst Erb
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Rundfunk- und Fernseh-Katalog 1954/55
Literature/Schematics (2) Katalog Rundfunk-Phono-Fernsehen 1954/55, Thiele Helmstedt


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1577 models, 1301 with images and 1149 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Loewe-Opta;: Hellas Plastik 552W/P
Threads: 1 | Posts: 1
Hits: 2502     Replies: 0

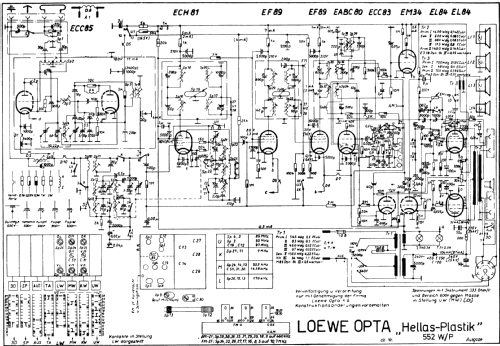

loewe-opta: 552W/P; Hellas Plastik, Schaltplan
Martin Steyer
01.Mar.05
  1 Der Schaltplan ist leider so gut wie unleserlich, könnte jemand einen besseren (am besten zweigeteilten) Schaltplan laden? Komme bei der Restauration nicht weiter, da ich die Bauteilewerte nicht lesen kann.

Danke, Martin Steyer

Loewe-Opta;: Hellas Plastik 552W/P
End of forum contributions about this model
