Iris 651

Iris 651; Loewe-Opta; (ID = 62361) Television

Iris 651; Loewe-Opta; (ID = 658341) Television

Iris 651; Loewe-Opta; (ID = 658342) Television

Iris 651; Loewe-Opta; (ID = 62362) Television

Iris 651; Loewe-Opta; (ID = 660303) Television

Iris 651; Loewe-Opta; (ID = 660304) Television

Iris 651; Loewe-Opta; (ID = 660305) Television

Iris 651; Loewe-Opta; (ID = 660306) Television

Iris 651; Loewe-Opta; (ID = 660309) Television

Iris 651; Loewe-Opta; (ID = 660307) Television
Iris 651; Loewe-Opta; (ID = 509854) Television Iris 651; Loewe-Opta; (ID = 509842) Television
Iris 651; Loewe-Opta; (ID = 509841) Television Iris 651; Loewe-Opta; (ID = 658233) Television
Iris 651; Loewe-Opta; (ID = 658234) Television Iris 651; Loewe-Opta; (ID = 658237) Television
Iris 651; Loewe-Opta; (ID = 1754297) Television
Use red slider bar for more.
Iris 651; Loewe-Opta; (ID = 509854) Television

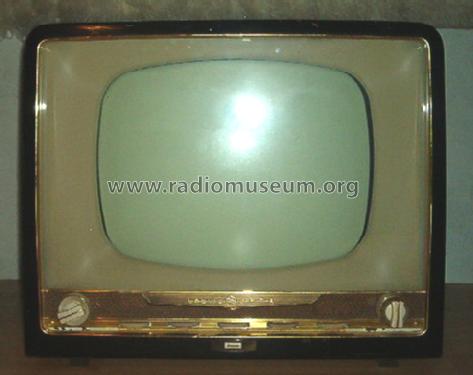

Loewe-Opta;: Iris 651 [Television] ID = 509854 494x391
Select picture or schematic to display from thumbnails on the right and click for download.
For model Iris 651, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PCC88 PCF80 EF80 PCL81 ECH81 PCL82 ECC82 PL36 PY81 DY86 PABC80 PL82 AW43-80
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz; 1 AF stage(s)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Iris 651 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 450 x 415 mm / 21.3 x 17.7 x 16.3 inch
Notes Röhren teilweise mehrfach vorhanden.
Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 798.00
Source of data HdB d.Rdf-& Ferns-GrH 1958/59

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
