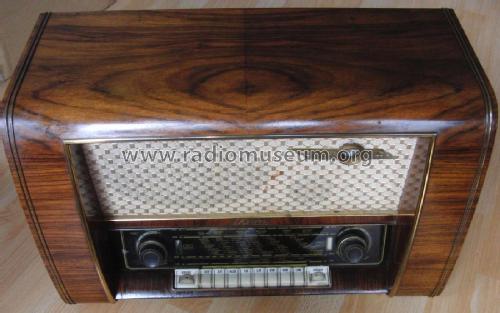

Venus 55 546W

• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25494

• • alternative name: Löwe Radio

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

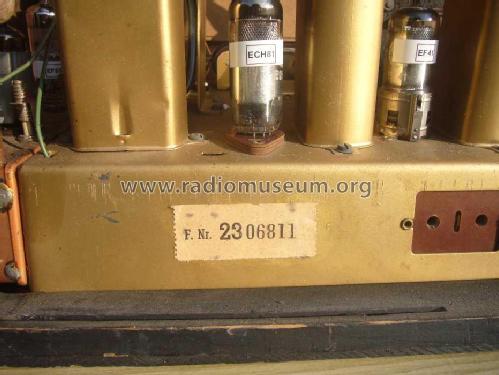

• Valves / Tubes
• EF85 EC92 ECH81 EF41 EM4 EABC80 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 464 or 473/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers

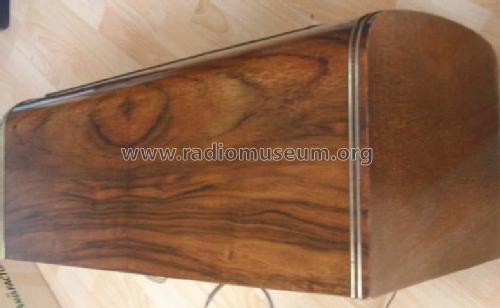

• Material
• Wooden case

• from Radiomuseum.org
• Model: Venus 55 546W - Loewe-Opta; Deutschland

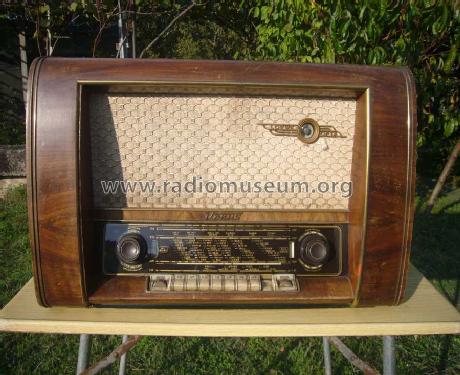

• Shape

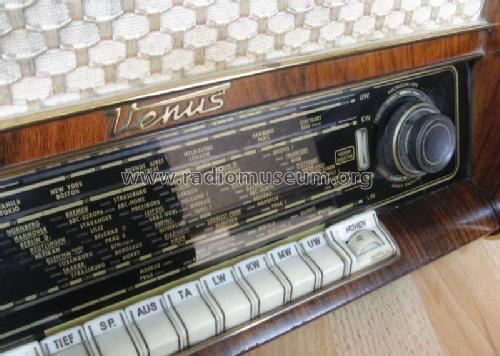

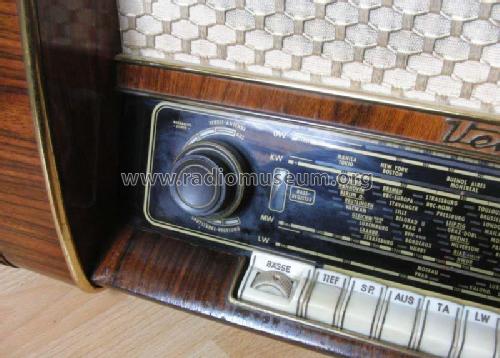

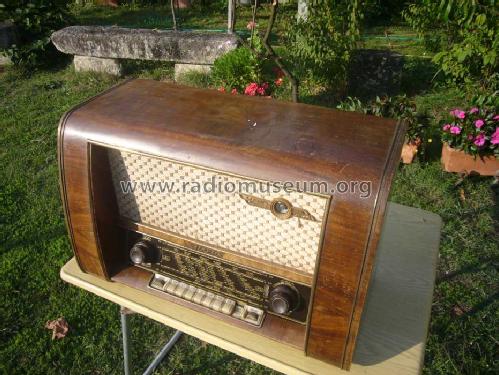

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 596 x 368 x 277 mm / 23.5 x 14.5 x 10.9 inch

• Notes

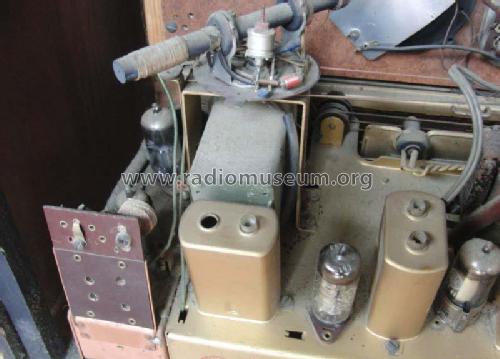

• Eingangsbandfilter für MW+LW, Sprache-Musik-Tasten, Bandbreiteschalter, drehbare Ferritantenne.

• Net weight (2.2 lb = 1 kg)
• 14.8 kg / 32 lb 9.6 oz (32.599 lb)

• Price in first year of sale
• 339.00 DM

• Source of data
• -- Schematic

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1954/55 (Gerät der Zwischensaison)
