315W; Mende - Radio H. (ID = 1473118) Radio

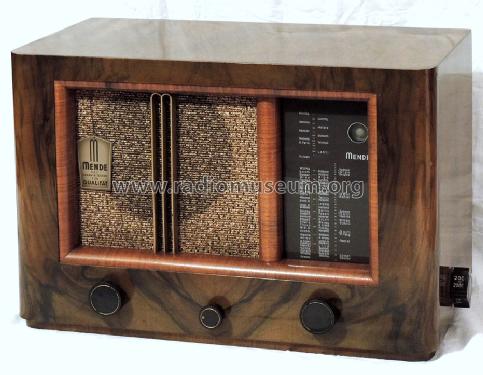

Mende - Radio H.: 315W [Radio] ID = 1473118 933x723
Select picture or schematic to display from thumbnails on the right and click for download.
For model 315W, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ACH1 AF3 AB2 AC2 AM2 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 315W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 365 x 295 mm / 22 x 14.4 x 11.6 inch
Notes variable Bandbreite.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 315.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios (1-5) = zur Verknüpfung mit Modellseiten
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
