radiomuseum.org
Please click your language flag. Bitte Sprachflagge klicken.

Super MS195-W (195W)

Super MS195-W ; Mende - Radio H. (ID = 760770) Radio

Super MS195-W ; Mende - Radio H. (ID = 760598) Radio

Super MS195-W ; Mende - Radio H. (ID = 760599) Radio

Super MS195-W ; Mende - Radio H. (ID = 350290) Radio

Super MS195-W ; Mende - Radio H. (ID = 760602) Radio

Super MS195-W ; Mende - Radio H. (ID = 760600) Radio

Super MS195-W ; Mende - Radio H. (ID = 760601) Radio

Super MS195-W ; Mende - Radio H. (ID = 1254351) Radio

Super MS195-W ; Mende - Radio H. (ID = 1254352) Radio

Super MS195-W ; Mende - Radio H. (ID = 1254353) Radio
Super MS195-W ; Mende - Radio H. (ID = 22944) Radio Super MS195-W ; Mende - Radio H. (ID = 22945) Radio
Super MS195-W ; Mende - Radio H. (ID = 22946) Radio Super MS195-W ; Mende - Radio H. (ID = 159067) Radio
Super MS195-W ; Mende - Radio H. (ID = 1008082) Radio Super MS195-W ; Mende - Radio H. (ID = 3328) Radio
Super MS195-W ; Mende - Radio H. (ID = 159064) Radio Super MS195-W ; Mende - Radio H. (ID = 159065) Radio
Super MS195-W ; Mende - Radio H. (ID = 159066) Radio Super MS195-W ; Mende - Radio H. (ID = 708198) Radio
Use red slider bar for more.
Super MS195-W ; Mende - Radio H. (ID = 22944) Radio

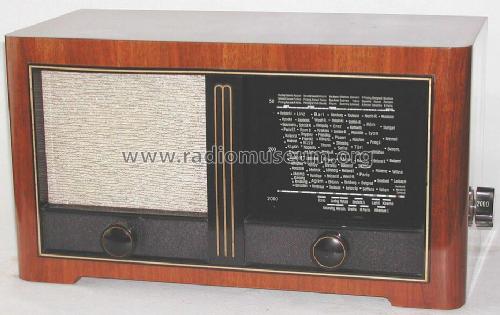

Mende - Radio H.: Super MS195-W [Radio] ID = 22944 933x588
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super MS195-W (195W), Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super MS195-W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 295 x 260 mm / 21.3 x 11.6 x 10.2 inch
Notes Das Typschild des Empfängers zeigt MS195W, dagegen führen die Service-Unterlagen die Typbezeichnung 195W.
Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 195.00 RM
Collectors' prices
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

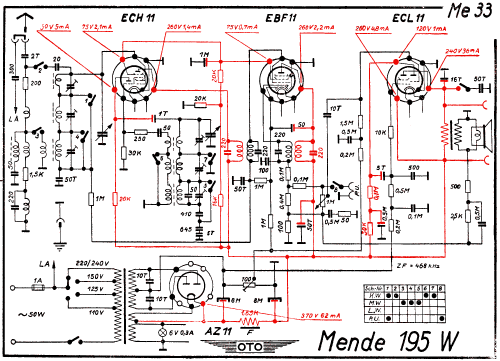

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 306 models, 276 with images and 197 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






rmXorg
