Super MS216WDK (216WDK)

Super MS216WDK ; Mende - Radio H. (ID = 205634) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205757) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205635) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205638) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205639) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205640) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205641) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205642) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205643) Radio

Super MS216WDK ; Mende - Radio H. (ID = 205636) Radio
Super MS216WDK ; Mende - Radio H. (ID = 2033280) Radio Super MS216WDK ; Mende - Radio H. (ID = 2033281) Radio
Super MS216WDK ; Mende - Radio H. (ID = 2033283) Radio Super MS216WDK ; Mende - Radio H. (ID = 2033284) Radio
Super MS216WDK ; Mende - Radio H. (ID = 2033285) Radio Super MS216WDK ; Mende - Radio H. (ID = 2033286) Radio
Super MS216WDK ; Mende - Radio H. (ID = 2033287) Radio Super MS216WDK ; Mende - Radio H. (ID = 2033288) Radio

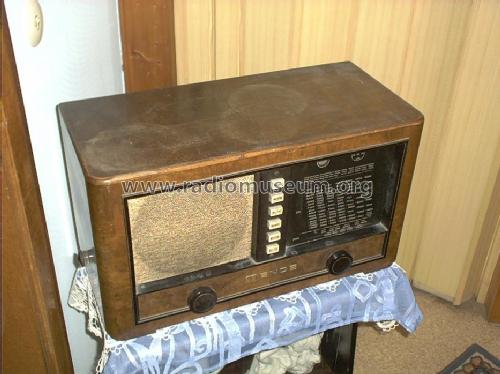

Super MS216WDK ; Mende - Radio H. (ID = 59050) Radio Super MS216WDK ; Mende - Radio H. (ID = 708202) Radio
Use red slider bar for more.
Super MS216WDK ; Mende - Radio H. (ID = 2033280) Radio

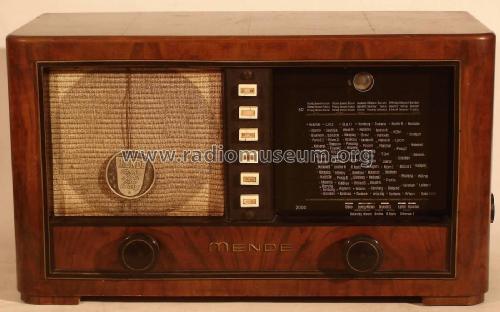

Mende - Radio H.: Super MS216WDK [Radio] ID = 2033280 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super MS216WDK (216WDK), Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super MS216WDK - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 565 x 320 x 260 mm / 22.2 x 12.6 x 10.2 inch
Notes

Baugleich zum 216W, aber mit Drucktasten-Aggregat für sechs Stationen, einstellbar mit speziellem Schlüssel, siehe hier.

Das Typschild des Empfängers zeigt MS216WDK, dagegen führen die Service-Unterlagen die Typbezeichnung 216WDK. Es handelt sich dabei um dasselbe Modell.

Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 249.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 308 models, 278 with images and 201 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
