For model 305WF EL84, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF80 EC92 EF41 ECH81 EM80 EF85 EABC80 EL84
Semiconductors (the count is only for transistors) B250C90
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out

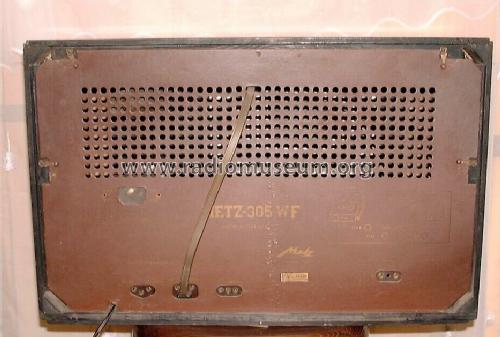

from Radiomuseum.org Model: 305WF [EL84] - Metz Transformatoren- und
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 373 x 285 mm / 22.8 x 14.7 x 11.2 inch
Notes

EF41 HF-Vorstufe für Ferritantenne.
Das orig. Metz-Schema datiert vom 20.8.1953

Siehe auch Metz 305WF mit EM85 und EL41 in der Endstufe.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
External source of data Erb
Mentioned in -- Schematic
Literature/Schematics (1) Funkschau (Schaltungssammlung Nr.23)
