AG 604

AG 604; Orion; Budapest (ID = 2128380) Radio
AG 604; Orion; Budapest (ID = 1317956) Radio AG 604; Orion; Budapest (ID = 1317957) Radio
AG 604; Orion; Budapest (ID = 1317958) Radio AG 604; Orion; Budapest (ID = 1317959) Radio
AG 604; Orion; Budapest (ID = 1317961) Radio AG 604; Orion; Budapest (ID = 1502642) Radio
AG 604; Orion; Budapest (ID = 2128182) Radio AG 604; Orion; Budapest (ID = 2184289) Radio
AG 604; Orion; Budapest (ID = 2184291) Radio
Use red slider bar for more.
AG 604; Orion; Budapest (ID = 1317956) Radio
Orion; Budapest: AG 604 [Radio] ID = 1317956 750x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model AG 604, Orion; Budapest:
Thanks for Mr.Kollár Ernő -.radiomuseum.hu -, Hungary, and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1958–1961 Category: Broadcast Receiver - or past WW2 Tuner

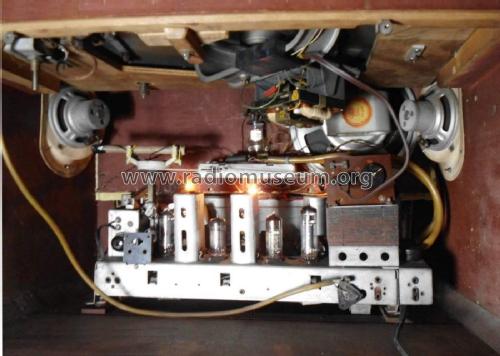

Valves / Tubes 7: ECC85 ECH81 EF80 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

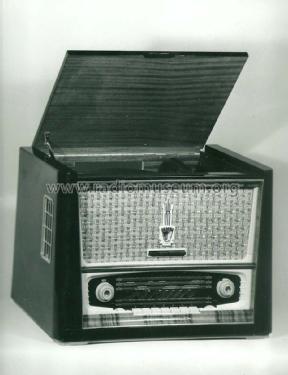

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: AG 604 - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 450 x 420 mm / 22.8 x 17.7 x 16.5 inch
Notes

2xSW (5,75-21,8 MHz), FM 87,5 -100 MHz

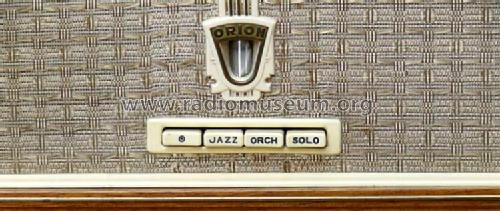

4 Klangtasten, Höhen- und Tiefenregler. Drehbare Feritantenne.

Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 4'300.00 HUF
Source of data Radio es Televizio Vevö keszülekek, 1956-57
Literature/Schematics (1) -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
