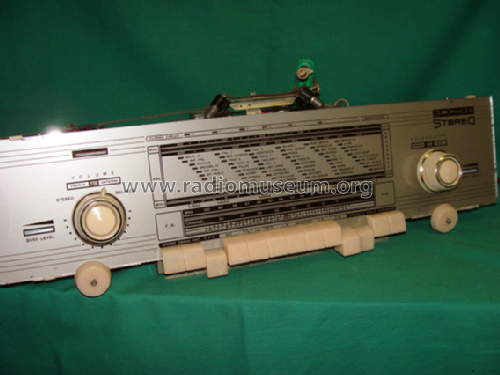

Windsor ; Philco Italiana, (ID = 1344565) Radio Windsor ; Philco Italiana, (ID = 1344566) Radio
Windsor ; Philco Italiana, (ID = 1344567) Radio Windsor ; Philco Italiana, (ID = 1344568) Radio
Use red slider bar for more.
Windsor ; Philco Italiana, (ID = 943479) Radio
Philco Italiana,: Windsor [Radio] ID = 943479 824x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model Windsor, Philco Italiana, Milano

Country:  Italy
Manufacturer / Brand:  Philco Italiana, Milano
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC83 ECC83 ECC83 EL95 EL95 EL95 EL95
Semiconductors (the count is only for transistors) Selen
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 6 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Windsor - Philco Italiana, Milano
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1100 x 800 x 550 mm / 43.3 x 31.5 x 21.7 inch
Notes Per lo schema fare riferimento alla radio Graetz Fantasia 1022 che monta lo stesso telaio. Giradischi 4 velocità. Mobile in legno tinta mogano.
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Sergio Giorgi. See "Data change" for further contributors.
