765M

765M; Philips Italy; (ID = 38454) Radio
765M; Philips Italy; (ID = 135140) Radio 765M; Philips Italy; (ID = 135141) Radio
765M; Philips Italy; (ID = 135142) Radio 765M; Philips Italy; (ID = 903592) Radio
765M; Philips Italy; (ID = 903594) Radio 765M; Philips Italy; (ID = 903598) Radio
765M; Philips Italy; (ID = 903601) Radio 765M; Philips Italy; (ID = 1413944) Radio
765M; Philips Italy; (ID = 1668750) Radio 765M; Philips Italy; (ID = 1668768) Radio
Use red slider bar for more.
765M; Philips Italy; (ID = 135140) Radio
Philips Italy;: 765M [Radio] ID = 135140 315x229
Select picture or schematic to display from thumbnails on the right and click for download.

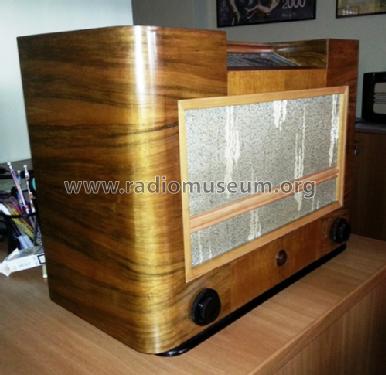

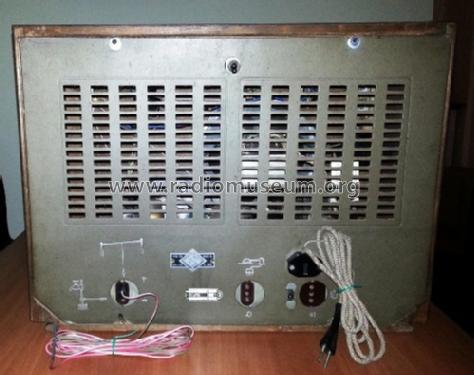

For model 765M, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner

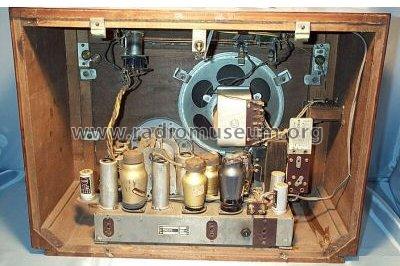

Valves / Tubes 7: AK2 AF3 AB2 ABC1 AM2 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 765M - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 410 x 250 mm / 21.7 x 16.1 x 9.8 inch
Notes

Indicatore di sintonia (AM2).
Controllo di tono. Ingresso Fono.

Price in first year of sale 1'750.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (1) Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
