856A-19

856A-19; Philips, Svenska AB, (ID = 253346) Radio 856A-19; Philips, Svenska AB, (ID = 253349) Radio

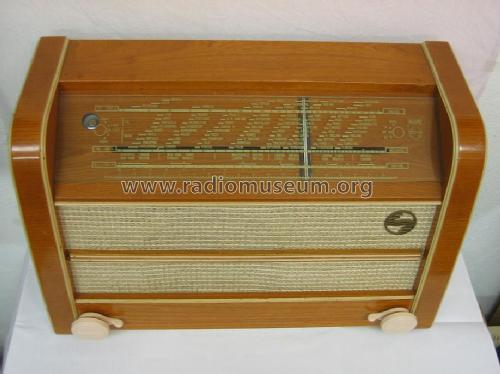

856A-19; Philips, Svenska AB, (ID = 253348) Radio 856A-19; Philips, Svenska AB, (ID = 253347) Radio
Use red slider bar for more.
856A-19; Philips, Svenska AB, (ID = 253346) Radio
Philips, Svenska AB,: 856A-19 [Radio] ID = 253346 918x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model 856A-19, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 6SK7GT 6SQ7GT 6V6GT 6U5 or 6G5 AZ1
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 856A-19 - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 340 x 235 mm / 20.9 x 13.4 x 9.3 inch
Notes Dial lamps: 2× 8045D 6,3 V/0,32 A.

Model page created by Peter Olausson. See "Data change" for further contributors.



All listed radios etc. from Philips, Svenska AB, Stockholm
Here you find 204 models, 182 with images and 80 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
