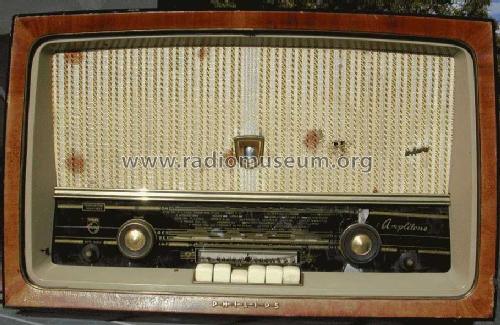

Amplitone BI571A; Philips Italy; (ID = 406898) Radio
Philips Italy;: Amplitone BI571A [Radio] ID = 406898 909x591
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplitone BI571A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF85 EM80 EABC80 EL86 EL86 EZ81
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Amplitone BI571A - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 400 x 250 mm / 24.8 x 15.7 x 9.8 inch
Notes
  • Altoparlanti ad alta impedenza (800 ohm) tipo: 9766AM: 5" biconico da 3W e 9748A: 8" da 6W;
  • Stadio di BF "Single-ended" senza trasformatore di uscita;
  • Antenna AM orientabile;
  • Presa per altoparlamte esterno da 800 ohm;
  • Regolazione dei toni alti e toni bassi separate;
  • Consumo dalla rete: 90 W.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 105, jan-feb 2012)
Literature/Schematics (1) -- Original-techn. papers. (D.E. Ravalico, Il Radiolibro, 17a ed., Hoepli, 1960)

Model page created by Rino Ferro † 2008. See "Data change" for further contributors.
