B4S70A

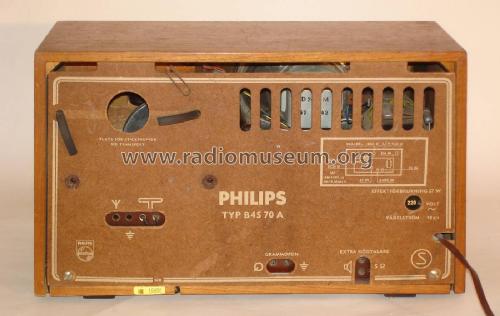

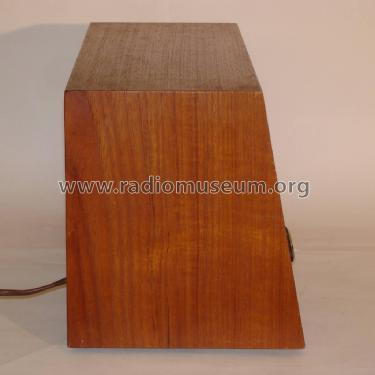

B4S70A; Philips, Svenska AB, (ID = 2625135) Radio B4S70A; Philips, Svenska AB, (ID = 2625136) Radio
B4S70A; Philips, Svenska AB, (ID = 2625137) Radio B4S70A; Philips, Svenska AB, (ID = 2625138) Radio
B4S70A; Philips, Svenska AB, (ID = 2625139) Radio B4S70A; Philips, Svenska AB, (ID = 2625140) Radio
B4S70A; Philips, Svenska AB, (ID = 2625141) Radio B4S70A; Philips, Svenska AB, (ID = 1139218) Radio
B4S70A; Philips, Svenska AB, (ID = 1139219) Radio
Use red slider bar for more.
B4S70A; Philips, Svenska AB, (ID = 2625135) Radio
Philips, Svenska AB,: B4S70A [Radio] ID = 2625135 1400x939
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4S70A, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B4S70A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 234 x 206 mm / 15.6 x 9.2 x 8.1 inch
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
