For model B5X68A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF85 EM80 EABC80 EL84 EL86 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; Export model
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 145; 190; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B5X68A - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 518 x 374 x 223 mm / 20.4 x 14.7 x 8.8 inch
Notes

Wave bands:
FM: 108.0 - 87.5 MHz
SW1: 15.8 - 7.5 MHz
SW2:   7.5 - 3.2 MHz
MW: 1600 - 529 kHz

Speaker: AD3700AM (Z = 800 ohms).

This model was also sold in the USA under the Norelco brand, see model B5X68A.

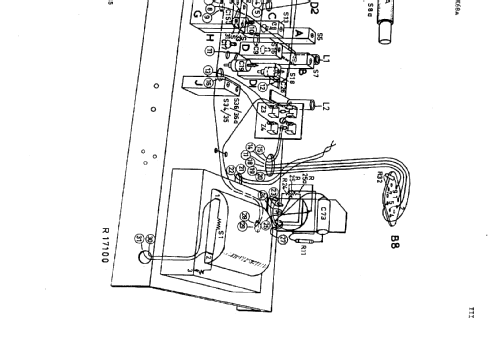

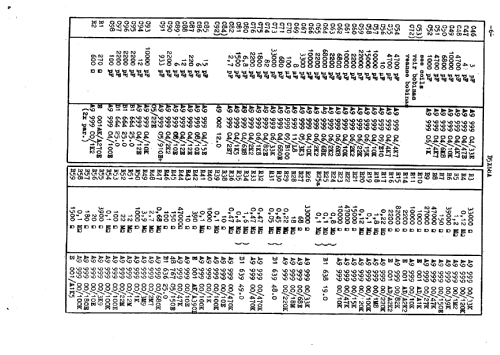

Mentioned in -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4876 models, 4092 with images and 3280 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: B5X68A
Threads: 1 | Posts: 1
Hits: 2001     Replies: 0
philips: B5X68A;
Tony Ton
20.Nov.03
  1 The Cabinet of this radio is made of Bakelite. The tube compliment is the following ECC85, EM80, ECH81, EF89, EF85, EABC80, EL86, EL84, EZ80 These sets were sold world wide and I paid $20 Canadain Dollars for mine but its NOT for sale. Its didn't work when I first bought it and was in rough condition. After 18 hours worth of work 6 replaced tubes it works and looks great!
