B6X62A

B6X62A; Philips; Eindhoven (ID = 45625) Radio

B6X62A; Philips; Eindhoven (ID = 45626) Radio

B6X62A; Philips; Eindhoven (ID = 45627) Radio

B6X62A; Philips; Eindhoven (ID = 45628) Radio

B6X62A; Philips; Eindhoven (ID = 45629) Radio

B6X62A; Philips; Eindhoven (ID = 45630) Radio

B6X62A; Philips; Eindhoven (ID = 45631) Radio

B6X62A; Philips; Eindhoven (ID = 45632) Radio

B6X62A; Philips; Eindhoven (ID = 45633) Radio

B6X62A; Philips; Eindhoven (ID = 45634) Radio
B6X62A; Philips; Eindhoven (ID = 1782847) Radio B6X62A; Philips; Eindhoven (ID = 235501) Radio
B6X62A; Philips; Eindhoven (ID = 518107) Radio B6X62A; Philips; Eindhoven (ID = 518108) Radio

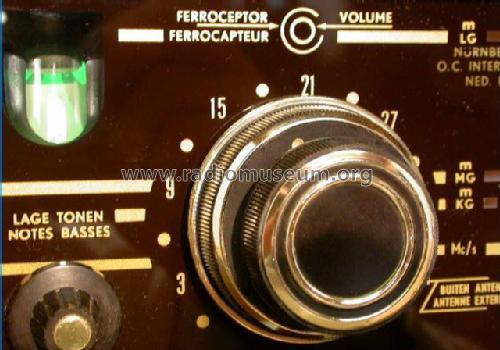

B6X62A; Philips; Eindhoven (ID = 518110) Radio B6X62A; Philips; Eindhoven (ID = 518111) Radio
B6X62A; Philips; Eindhoven (ID = 518112) Radio B6X62A; Philips; Eindhoven (ID = 518113) Radio
B6X62A; Philips; Eindhoven (ID = 518114) Radio B6X62A; Philips; Eindhoven (ID = 1019786) Radio
Use red slider bar for more.
B6X62A; Philips; Eindhoven (ID = 1782847) Radio
Philips; Eindhoven: B6X62A [Radio] ID = 1782847 933x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model B6X62A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EF85 EM80 EABC80 ECC83 EL84 EL84 EZ81
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: B6X62A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 257 x 242 mm / 24.8 x 10.1 x 9.5 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 150 - 345 kHz.
  • BC: 520 - 1614 kHz.
  • SW: 5,9 - 18,1 MHz.
  • FM: 87,5 - 100 MHz.
FM with dipole antenna input.

Amplifier: Bi-Ampli = separate channel for bass and treble. Maximum calculated power: 2 x 6 W in 5 Ohm.
No internal loudspeakers.
Recommended external loudspeakers: AD5004 (bass) + AD5005 (treble).

Dial lamps: 8024N-71 (6.3V / 300mA, bajonet) or according to the service manual: 8024N/778.
Literature/Schematics (1) -- Original-techn. papers. (Service manual 93 988 23.1.22 B6X62A)

Model page created by Iven Müller. See "Data change" for further contributors.
