Magnetophonschrank FA821A

Magnetophonschrank FA821A; Philips - Österreich (ID = 2494447) Radio Magnetophonschrank FA821A; Philips - Österreich (ID = 2494448) Radio
Magnetophonschrank FA821A; Philips - Österreich (ID = 2494449) Radio Magnetophonschrank FA821A; Philips - Österreich (ID = 2494450) Radio
Magnetophonschrank FA821A; Philips - Österreich (ID = 2494451) Radio Magnetophonschrank FA821A; Philips - Österreich (ID = 2494452) Radio
Magnetophonschrank FA821A; Philips - Österreich (ID = 2494454) Radio Magnetophonschrank FA821A; Philips - Österreich (ID = 2494456) Radio
Magnetophonschrank FA821A; Philips - Österreich (ID = 2494457) Radio Magnetophonschrank FA821A; Philips - Österreich (ID = 2494458) Radio
Use red slider bar for more.

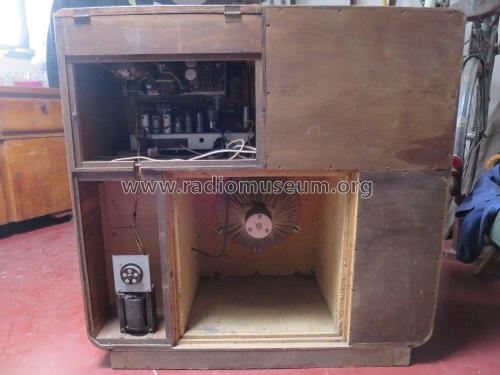

Magnetophonschrank FA821A; Philips - Österreich (ID = 2494447) Radio
Philips - Österreich: Magnetophonschrank FA821A [Radio] ID = 2494447 1000x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophonschrank FA821A, Philips - Österreich:
Gerät aus meiner Sammlung.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1952/1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: ECH42 EAF42 EAF42 EM34 EL41 EL41 AZ1 EF40 EF42 EL41 AZ41 EM34
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Changer + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 32 cm = 12.6 inch
Power out
from Radiomuseum.org Model: Magnetophonschrank FA821A - Philips - Österreich
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1000 x 995 x 490 mm / 39.4 x 39.2 x 19.3 inch
Notes

Mit Plattenwechsler Philips AG1000 und Tonbandgerät EL3530/11 (mit 5 Röhren: EF40 EF42 EL41 AZ41 EM34, Bandgeschwindigkeit 9,5 cm/sec).

Siehe auch UKW-Magnetophonschrank FA833A

Net weight (2.2 lb = 1 kg) 75 kg / 165 lb 3.2 oz (165.198 lb)
Collectors' prices

Model page created by Michael Poitner. See "Data change" for further contributors.
