• Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 306121

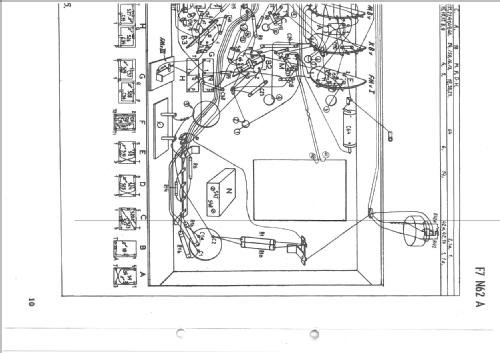

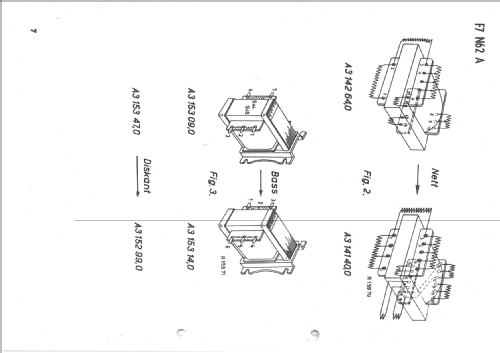

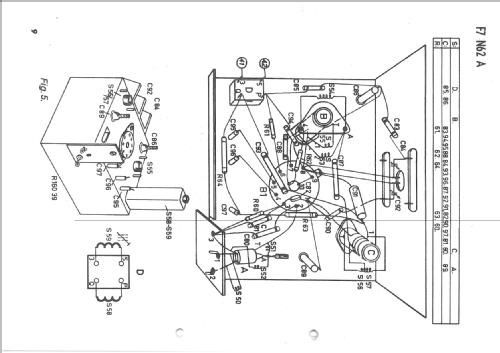

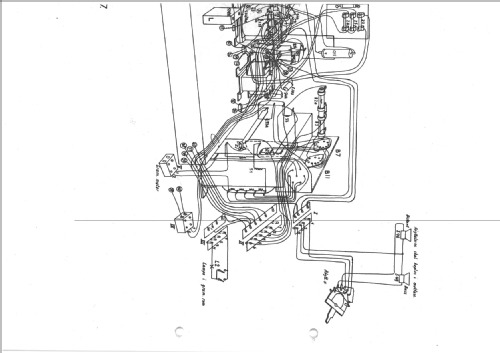

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 145; 160; 180; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Prominent de Luxe 57 F7N62A - Philips Norway Norsk A/S
  • Shape
  • Console with Push Buttons.
  • Notes
  • 2 speakers: 1 x AD3700M (Z = 5 ohms), 1 x 9710 (Z = 7 ohms).
    Record changer: Philips AG1003

    Wavebands:
    LW/LB = 345 - 150 kHz
    MB/MW = 1610 - 519 kHz
    KB/SW = 18.2 - 5.9 MHz
    FM = 87.5 - 100 MHz

  • Author
  • Model page created by Jan Sten. See "Data change" for further contributors.
