Raffael L 17TD230A

Raffael L 17TD230A; Philips Radios - (ID = 382132) Television

Raffael L 17TD230A; Philips Radios - (ID = 382115) Television

Raffael L 17TD230A; Philips Radios - (ID = 382116) Television

Raffael L 17TD230A; Philips Radios - (ID = 382121) Television

Raffael L 17TD230A; Philips Radios - (ID = 382119) Television

Raffael L 17TD230A; Philips Radios - (ID = 1252825) Television

Raffael L 17TD230A; Philips Radios - (ID = 1887492) Television

Raffael L 17TD230A; Philips Radios - (ID = 1887493) Television

Raffael L 17TD230A; Philips Radios - (ID = 1887494) Television

Raffael L 17TD230A; Philips Radios - (ID = 1887495) Television
Raffael L 17TD230A; Philips Radios - (ID = 1925638) Television Raffael L 17TD230A; Philips Radios - (ID = 1369318) Television
Raffael L 17TD230A; Philips Radios - (ID = 1369319) Television Raffael L 17TD230A; Philips Radios - (ID = 1369322) Television
Raffael L 17TD230A; Philips Radios - (ID = 1488448) Television Raffael L 17TD230A; Philips Radios - (ID = 1887497) Television
Use red slider bar for more.
Raffael L 17TD230A; Philips Radios - (ID = 1925638) Television

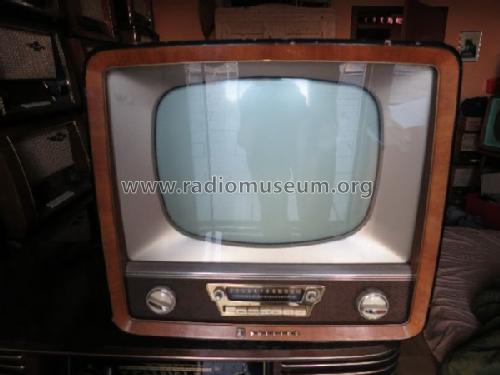

Philips Radios -: Raffael L 17TD230A [Television] ID = 1925638 1400x1285
Select picture or schematic to display from thumbnails on the right and click for download.
For model Raffael L 17TD230A, Philips Radios - Deutschland:

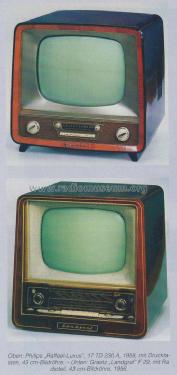

Gerät steht im Museum für Kommunikation, Bern.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: PCC88 PCF80 EF85 EF80 EF80 EF80 PCL84 PCF80 ECH81 PCL82 PCF80 PL36 DY86 PY81 PCF80 UCC85 PCF80 PCF80 PL84 PL84 UY82 UY82 AW43-80
Semiconductors (the count is only for transistors) OA70 OA91
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Raffael L 17TD230A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 515 x 485 mm / 21.3 x 20.3 x 19.1 inch
Notes

Nur VHF mit 12 Kanal Cascode Trommelwähler KR 361 52.

Fernbedienung typ KR 357 55

Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Price in first year of sale 898.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Philips Radios - Deutschland
