Projektionstruhe TD2314A

Projektionstruhe TD2314A; Philips Radios - (ID = 200224) Television

Projektionstruhe TD2314A; Philips Radios - (ID = 200225) Television

Projektionstruhe TD2314A; Philips Radios - (ID = 200226) Television

Projektionstruhe TD2314A; Philips Radios - (ID = 200227) Television

Projektionstruhe TD2314A; Philips Radios - (ID = 200221) Television
Projektionstruhe TD2314A; Philips Radios - (ID = 1949070) Television Projektionstruhe TD2314A; Philips Radios - (ID = 1033493) Television
Projektionstruhe TD2314A; Philips Radios - (ID = 1432822) Television Projektionstruhe TD2314A; Philips Radios - (ID = 226208) Television
Projektionstruhe TD2314A; Philips Radios - (ID = 226209) Television Projektionstruhe TD2314A; Philips Radios - (ID = 403277) Television
Projektionstruhe TD2314A; Philips Radios - (ID = 1033494) Television Projektionstruhe TD2314A; Philips Radios - (ID = 1432823) Television
Use red slider bar for more.
Projektionstruhe TD2314A; Philips Radios - (ID = 1949070) Television
Philips Radios -: Projektionstruhe TD2314A [Television] ID = 1949070 1400x1839

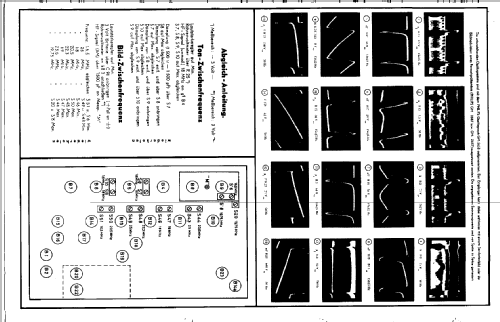

Select picture or schematic to display from thumbnails on the right and click for download.
For model Projektionstruhe TD2314A, Philips Radios - Deutschland:
Gerät steht im Rundfunkmuseum der Stadt Fürth.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1954/1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 32: EF80 ECC81 EF80 EF80 EF80 EF80 EB91 EF80 PL83 EF80 EF80 EQ80 EL42 ECL80 EB91 ECL80 ECL80 PL81 PY80 UBC41 UL44 UL44 EY51 EY51 EY51 DAF96 PY82 PY82 UY41 UY41 UY41 MW6-2
Main principle Super-Heterodyne (Super in general); ZF/IF 23500 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Projektionstruhe TD2314A - Philips Radios - Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 730 x 1110 x 490 mm / 28.7 x 43.7 x 19.3 inch

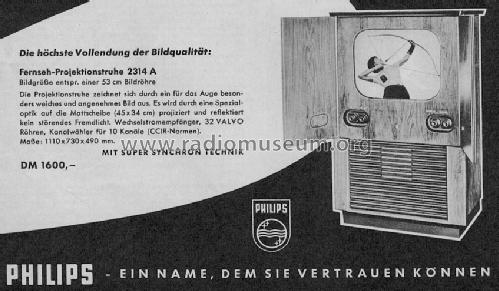

Notes 10 VHF-Kanäle + 2 Reserve. Projektion über Schmidt-Optik, Bildgröße 450 × 340 mm.
Net weight (2.2 lb = 1 kg) 57 kg / 125 lb 8.8 oz (125.551 lb)
Price in first year of sale 1'600.00 DM
Collectors' prices
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
