658

658; Phonola SA, FIMI; (ID = 620725) Radio
658; Phonola SA, FIMI; (ID = 684643) Radio 658; Phonola SA, FIMI; (ID = 684644) Radio
658; Phonola SA, FIMI; (ID = 684645) Radio 658; Phonola SA, FIMI; (ID = 684646) Radio
658; Phonola SA, FIMI; (ID = 684647) Radio 658; Phonola SA, FIMI; (ID = 684648) Radio
Use red slider bar for more.

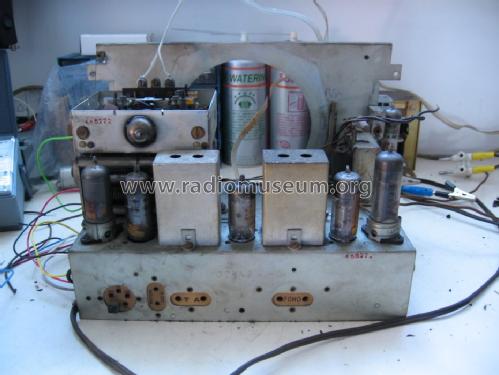

658; Phonola SA, FIMI; (ID = 684643) Radio
Phonola SA, FIMI;: 658 [Radio] ID = 684643 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 658, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF89 EABC80 EM80 UL41 UY42
Main principle Superheterodyne (common); 2 AF stage(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-235 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 658 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 410 x 290 x 290 mm / 16.1 x 11.4 x 11.4 inch
Source of data Guida Pratica Antique Radio II (2000)

Model page created by Marco Gilardetti. See "Data change" for further contributors.



All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Here you find 673 models, 395 with images and 490 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
