TV-2344; Phonola SA, FIMI; (ID = 783808) Television

TV-2344; Phonola SA, FIMI; (ID = 783809) Television

TV-2344; Phonola SA, FIMI; (ID = 783810) Television

TV-2344; Phonola SA, FIMI; (ID = 783811) Television

TV-2344; Phonola SA, FIMI; (ID = 783812) Television

TV-2344; Phonola SA, FIMI; (ID = 783813) Television

TV-2344; Phonola SA, FIMI; (ID = 783814) Television

TV-2344; Phonola SA, FIMI; (ID = 783815) Television
Use red slider bar for more.
TV-2344; Phonola SA, FIMI; (ID = 783808) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1964 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC88 PCF80 PC88 PC86 EF183 EF80 EF80 PCL84 EF80 PCL86 ECH81 PCL85 ECL80 EF184 PL36 PY81 DY87 AW59-11W
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: TV-2344 - Phonola SA, FIMI; Saronno VA
Shape Tablemodel, with any shape - general.
Notes Cinescopio 23" 110° tipo autoprotetto.
VHF (S40) UHF (S38).
FI 3 stadi 40 MHz sistema intercarrier.
Commutatore programmi a pulsanti.
Circuiti deflessione stabilizzati.
Sintonia automatica.

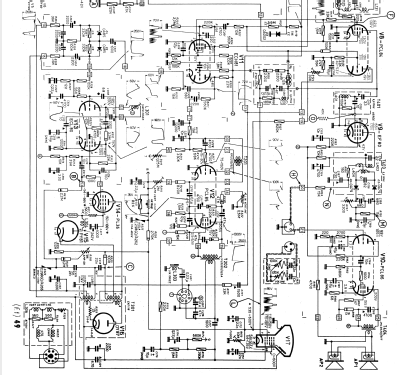

Literature/Schematics (1) -- Schematic (Schemario dei Televisori Phonola 1952 al 1964)
