Atelier FE860

Atelier FE860; Rafena Werke (ID = 63570) Television

Atelier FE860; Rafena Werke (ID = 63571) Television

Atelier FE860; Rafena Werke (ID = 63572) Television

Atelier FE860; Rafena Werke (ID = 63573) Television

Atelier FE860; Rafena Werke (ID = 63621) Television

Atelier FE860; Rafena Werke (ID = 63622) Television

Atelier FE860; Rafena Werke (ID = 820069) Television

Atelier FE860; Rafena Werke (ID = 820070) Television
Atelier FE860; Rafena Werke (ID = 1033309) Television Atelier FE860; Rafena Werke (ID = 1814511) Television
Atelier FE860; Rafena Werke (ID = 1081944) Television Atelier FE860; Rafena Werke (ID = 121410) Television
Atelier FE860; Rafena Werke (ID = 163769) Television Atelier FE860; Rafena Werke (ID = 2575835) Television
Atelier FE860; Rafena Werke (ID = 547690) Television Atelier FE860; Rafena Werke (ID = 547693) Television
Atelier FE860; Rafena Werke (ID = 547694) Television Atelier FE860; Rafena Werke (ID = 1834501) Television
Use red slider bar for more.
Atelier FE860; Rafena Werke (ID = 1033309) Television
Rafena Werke: Atelier FE860 [Television] ID = 1033309 1400x1962

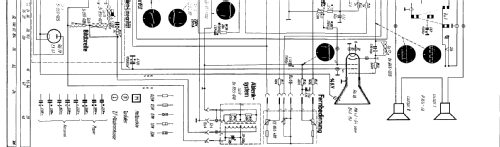

Select picture or schematic to display from thumbnails on the right and click for download.
For model Atelier FE860, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):
Ausgestellt im Rundfunkmuseum der Stadt Fürth

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: ECC84 ECF82 EF80 EABC80 EL83 EL84 ECL82 EL81 EY81
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Atelier FE860 - Rafena Werke Radeberg, VEB;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 620 x 1050 x 560 mm / 24.4 x 41.3 x 22 inch
Notes Bildröhre: B43M1 oder MW43-64. Rö. sind nicht alle angeführt. Nur VHF-Bereich. Standgerät mit ovalem Gehäuse. Chassis vom FE855G eingebaut. 12-Kanal-Kaskodetuner
Price in first year of sale 1'950.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
