Derby FE846A

Derby FE846A; Rafena Werke (ID = 63549) Television

Derby FE846A; Rafena Werke (ID = 63550) Television

Derby FE846A; Rafena Werke (ID = 63551) Television

Derby FE846A; Rafena Werke (ID = 63552) Television

Derby FE846A; Rafena Werke (ID = 63553) Television

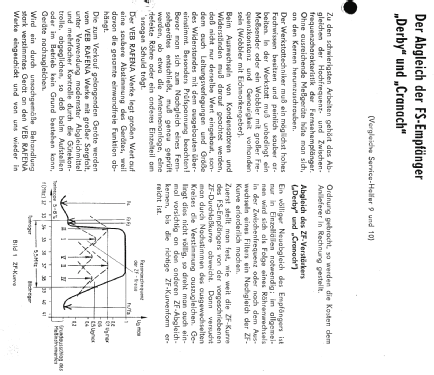

Derby FE846A; Rafena Werke (ID = 809734) Television

Derby FE846A; Rafena Werke (ID = 809738) Television

Derby FE846A; Rafena Werke (ID = 809741) Television

Derby FE846A; Rafena Werke (ID = 812030) Television

Derby FE846A; Rafena Werke (ID = 818407) Television
Derby FE846A; Rafena Werke (ID = 121537) Television Derby FE846A; Rafena Werke (ID = 549626) Television
Derby FE846A; Rafena Werke (ID = 549628) Television Derby FE846A; Rafena Werke (ID = 549625) Television

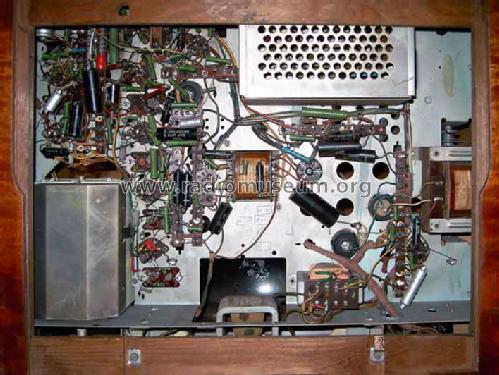

Derby FE846A; Rafena Werke (ID = 549631) Television Derby FE846A; Rafena Werke (ID = 549636) Television
Use red slider bar for more.
Derby FE846A; Rafena Werke (ID = 121537) Television
Rafena Werke: Derby FE846A [Television] ID = 121537 761x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Derby FE846A, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):
Prospektbild

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: ECC84 ECF82 EF80 ECL82 EABC80 EL84 ECC82 EL81 EY81 DY86 B30M1
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Derby FE846A - Rafena Werke Radeberg, VEB;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 480 x 570 mm / 21.7 x 18.9 x 22.4 inch
Notes 12-Kanal-Kaskodetuner. Nur VHF-Bereich. Röhren nicht alle aufgezählt. Siehe auch Modell FE845A mit 43cm-Bildröhre. Gerät war mit 30er und 43er Bildröhre präsent. Es gab später auch Umbausätze auf 43er Bildröhre.
Price in first year of sale 1'280.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

Model page created by Andreas Hahn. See "Data change" for further contributors.



All listed radios etc. from Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Here you find 108 models, 93 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
