Telerama Schauinsland P1026H

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66627) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66628) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66629) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66630) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66631) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66632) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66633) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 66635) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 209036) Television

Telerama Schauinsland P1026H; SABA; Villingen (ID = 209037) Television
Telerama Schauinsland P1026H; SABA; Villingen (ID = 459285) Television Telerama Schauinsland P1026H; SABA; Villingen (ID = 459287) Television
Telerama Schauinsland P1026H; SABA; Villingen (ID = 459286) Television Telerama Schauinsland P1026H; SABA; Villingen (ID = 209044) Television
Telerama Schauinsland P1026H; SABA; Villingen (ID = 278174) Television Telerama Schauinsland P1026H; SABA; Villingen (ID = 459288) Television
Telerama Schauinsland P1026H; SABA; Villingen (ID = 1031063) Television Telerama Schauinsland P1026H; SABA; Villingen (ID = 1031064) Television
Telerama Schauinsland P1026H; SABA; Villingen (ID = 1145902) Television Telerama Schauinsland P1026H; SABA; Villingen (ID = 1145904) Television
Use red slider bar for more.
Telerama Schauinsland P1026H; SABA; Villingen (ID = 459285) Television
SABA; Villingen: Telerama Schauinsland P1026H [Television] ID = 459285 513x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telerama Schauinsland P1026H, SABA; Villingen:
ausgestellt im Rundfunkmuseum Fürth

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1960 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 32: PCC88 ECC81 EF80 PC86 EL95 PL81 PL82 PL83 PY83 ECL80 EF89 PL84 DF96 PCF82 EAA91 PCF80 EY51 MW6-2
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker 2 Loudspeakers / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Telerama Schauinsland P1026H - SABA; Villingen
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 640 x 950 x 530 mm / 25.2 x 37.4 x 20.9 inch

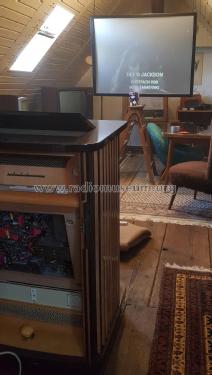

Notes Röhren sind teilweise mehrfach vorhanden. Projektionsfernseher mit Schmidt-Optik. Bilddiagonale auf zugeh. Projek.-tafel: 1,6m. Eingebauter Spannungskonstanthalter. VHF und UHF Bereich.
Net weight (2.2 lb = 1 kg) 73 kg / 160 lb 12.7 oz (160.793 lb)
Price in first year of sale 3'198.00 DM
Source of data -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
