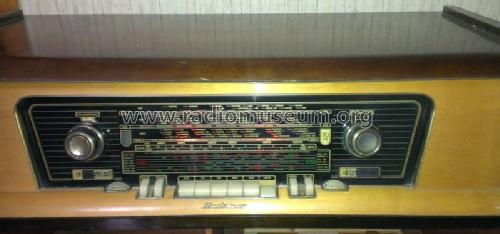

Balalaika 7146; Schaub und Schaub- (ID = 1386359) Radio
Use red slider bar for more.

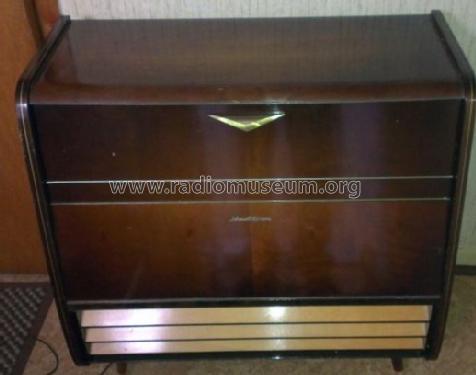

Balalaika 7146; Schaub und Schaub- (ID = 1386355) Radio
Schaub und Schaub-: Balalaika 7146 [Radio] ID = 1386355 518x408
Select picture or schematic to display from thumbnails on the right and click for download.
For model Balalaika 7146, Schaub und Schaub-Lorenz:
ebay 170977102158, 1terbieter.

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF93 EABC80 EM85 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Balalaika 7146 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Console with Push Buttons.
Notes

Rundfunkchassis = Goldsuper W32

Plattenspielerchassis = Perpetuum Ebner Rex A

Model page created by Martin Steyer. See "Data change" for further contributors.
