SM758

SM758; Siemens Italia; (ID = 675900) Radio

SM758; Siemens Italia; (ID = 675901) Radio

SM758; Siemens Italia; (ID = 675902) Radio

SM758; Siemens Italia; (ID = 675905) Radio
SM758; Siemens Italia; (ID = 1774170) Radio SM758; Siemens Italia; (ID = 953058) Radio
SM758; Siemens Italia; (ID = 953059) Radio SM758; Siemens Italia; (ID = 953060) Radio
SM758; Siemens Italia; (ID = 953061) Radio SM758; Siemens Italia; (ID = 953062) Radio
SM758; Siemens Italia; (ID = 953064) Radio SM758; Siemens Italia; (ID = 953067) Radio
SM758; Siemens Italia; (ID = 953068) Radio SM758; Siemens Italia; (ID = 1774171) Radio
Use red slider bar for more.

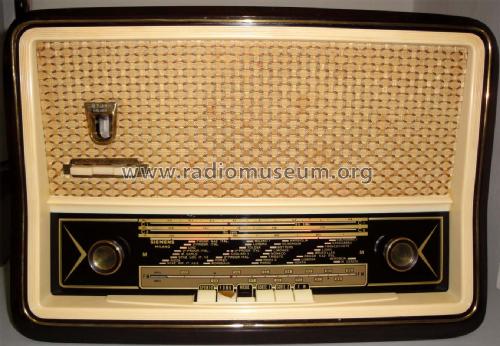

SM758; Siemens Italia; (ID = 1774170) Radio
Siemens Italia;: SM758 [Radio] ID = 1774170 1348x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model SM758, Siemens Italia; Milano

Country:  Italy
Manufacturer / Brand:  Siemens Italia; Milano
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner

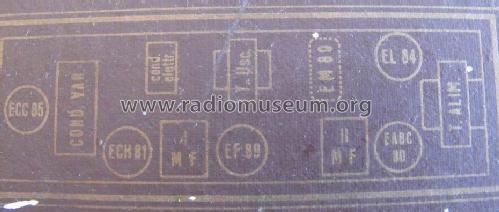

Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 469/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: SM758 - Siemens Italia; Milano
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 450 x 320 x 210 mm / 17.7 x 12.6 x 8.3 inch
Collectors' prices
Source of data Guida Pratica Antique Radio IV (2001)
Mentioned in D.E. Ravalico, Radio Riparazioni, XII Edizione, Hoepli
Literature/Schematics (1) -- Schematic (D.E. Ravalico, Il Radiolibro, XVII Edizione, Hoepli)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
