• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10663

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

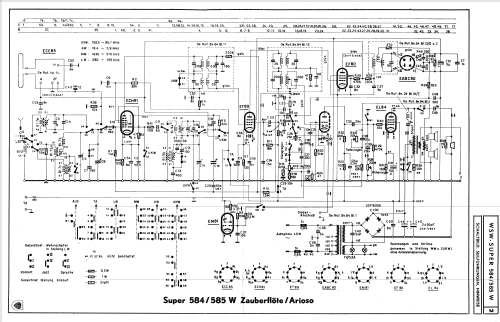

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EF80 EM81 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

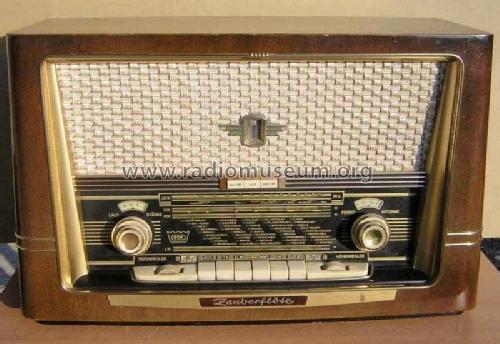

• Model: Zauberflöte Super 584W - Siemens-Austria WSW; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 360 x 240 mm / 22.8 x 14.2 x 9.4 inch

• Notes

• Weiterentwicklung des Bariton UKW-Super 564W mit 3 zusätzlichen Klangregister-Tasten

  • 6 Tasten
  • UKW Teil ähnlich dem Solist 58 UKW-Super 582W
  • Selen-Flachgleichrichter B250 C100
  • 2 Skalenlämpchen 7V; 0,3A
  • 2 Sicherungen 0,8A

  Parallelgerät zum Arioso Super 585W - selbes Chassis, anderes Gehäuse

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 2,620.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 202 models, 177 with images and 132 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens-Austria (WSW); Wien
