SA53T171A

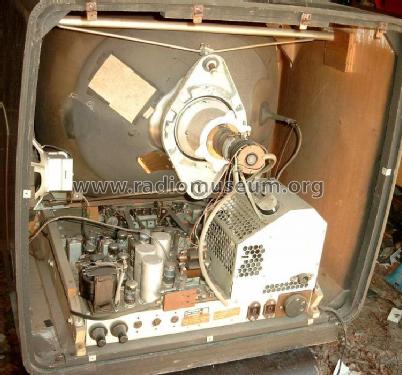

SA53T171A; Siera; Belgien (ID = 120433) Television SA53T171A; Siera; Belgien (ID = 120434) Television
SA53T171A; Siera; Belgien (ID = 120431) Television SA53T171A; Siera; Belgien (ID = 120432) Television
SA53T171A; Siera; Belgien (ID = 120435) Television SA53T171A; Siera; Belgien (ID = 120436) Television

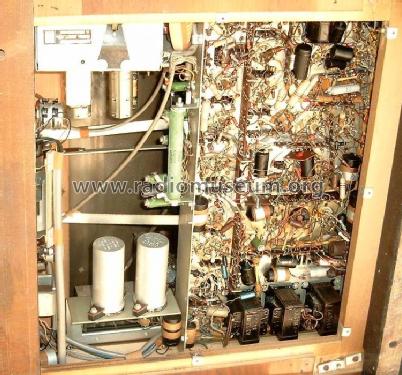

SA53T171A; Siera; Belgien (ID = 120437) Television SA53T171A; Siera; Belgien (ID = 120438) Television
SA53T171A; Siera; Belgien (ID = 120440) Television
Use red slider bar for more.
SA53T171A; Siera; Belgien (ID = 120433) Television
Siera; Belgien: SA53T171A [Television] ID = 120433 690x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA53T171A, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1956–1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 25: PCC84 PCF80 UF80 UF80 UF80 UF80 PCF80 PCF80 PL84 PL84 UF80 UF80 UF80 UF80 PL83 UCC85 PCF80 PCF80 UCC85 PCF80 PL36 PY81 DY87 PCL82 AW53-80
Main principle Superheterodyne (common)
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: SA53T171A - Siera; Belgien
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 660 x 640 x 560 mm / 26 x 25.2 x 22 inch
Source of data -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from Siera; Belgien
Here you find 435 models, 394 with images and 178 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
