Juwel 2 Gehäuse abgerundet, Tasten mittig

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

• Year
• 1958–1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 31096

• Picture

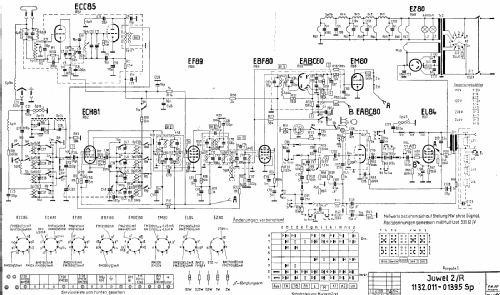

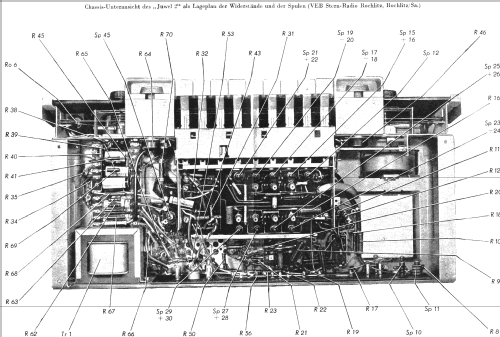

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EBF80 or EBF89 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Juwel 2 [Gehäuse abgerundet, Tasten mittig] - Stern-Radio Rochlitz, VEB, RFT

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 375 x 280 mm / 24.8 x 14.8 x 11 inch

• Notes
• Technisch gleich dem Juwel 2, allerdings hier mit abgerundeter Gehäusevariante.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 680.00

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers. (Funkverlag Hein, Service-CD)
