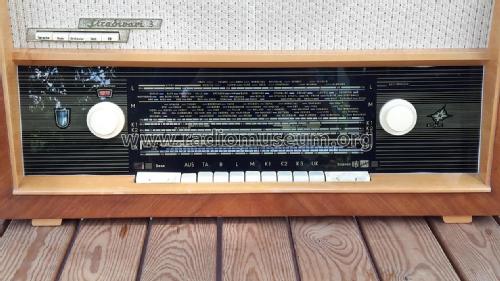

Stradivari 3 1142.008-00008 SP OIRT, eckiges Gehäuse
Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 258042
Prospektbild
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 440/10700 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 9 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 11 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stradivari 3 1142.008-00008 SP [OIRT, eckiges Gehäuse] - Stern-Radio Rochlitz, VEB, RFT
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 700 x 450 x 315 mm / 27.6 x 17.7 x 12.4 inch
- Notes
-
Chassis weitgehend identisch mit Stradivari 3 im eckigen, modernen Gehäuse, aber abweichender UKW-Bereich: 66 - 72 MHz. Gegentaktendstufe, 5-stufiges Klangfarbenregister mit 3D-Klang und H/T-Reglern, Taste für Bandbreiten-Umschaltung (AM), drehbare Ferritantenne, 3x KW.
- Net weight (2.2 lb = 1 kg)
- 25 kg / 55 lb 1.1 oz (55.066 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Klaus Gagneur. See "Data change" for further contributors.
