• Year
  • 1954
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30989
    • alternative name: Fernsehgerätewerk Staßfurt

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     5 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

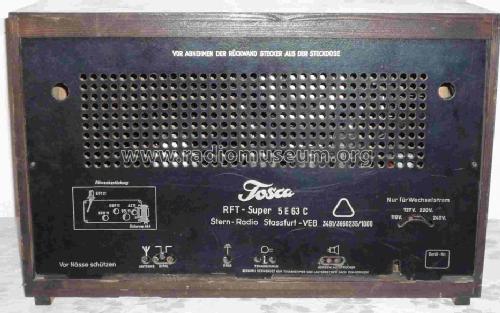

  • Model: RFT-Super, Stassfurt Tosca 5E63C - Stern-Radio Staßfurt, VEB, RFT
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 580 x 380 x 260 mm / 22.8 x 15 x 10.2 inch
  • Notes
  • Lautsprecher mit Hochtonkalotte.

    Die Modelle 5E63 UKW werden in 4 Ausführungen geliefert:

    • 5E63 UKW-A mit Selengleichrichter und elektro-dynamischem Lautsprecher,
    • 5E63 UKW-B mit Gleichrichterröhre und elektro-dynamischem Lautsprecher,
    • 5E63 UKW-C mit Gleichrichterröhre, perm.-dynamischem Lautsprecher und Siebdrossel,
    • 5E63 UKW-D mit Selengleichrichter, perm.-dynamischem Lautsprecher und Siebdrossel.

    Der Modellnamenzusatz Stassfurt wird in der Literatur und auf Schaltbildern nicht benutzt und ist nur Gegenstand der Frontansicht, um im Handel die Herkunft der Geräte für den Kunden besser identifizieren zu können.

  • Price in first year of sale
  • 480.00 M
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Gebrauchswarenkatalog Rundfunk Fernsehen Leipzig 1954)
  • Author
  • Model page created by Steffen Bartusch. See "Data change" for further contributors.
