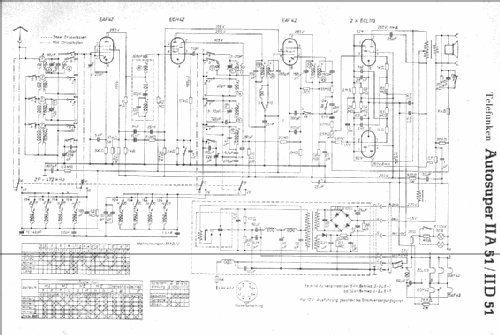

IID51; Telefunken (ID = 1235725) Car Radio
IID51; Telefunken (ID = 192947) Car Radio IID51; Telefunken (ID = 192948) Car Radio
IID51; Telefunken (ID = 367362) Car Radio IID51; Telefunken (ID = 403475) Car Radio
IID51; Telefunken (ID = 403477) Car Radio IID51; Telefunken (ID = 515298) Car Radio
IID51; Telefunken (ID = 342595) Car Radio IID51; Telefunken (ID = 342596) Car Radio
IID51; Telefunken (ID = 357098) Car Radio IID51; Telefunken (ID = 357099) Car Radio
Use red slider bar for more.
IID51; Telefunken (ID = 192947) Car Radio
Telefunken: IID51 [Car Radio] ID = 192947 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model IID51, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Bild ebay Verkäufer: tonz457

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1951/1952 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EAF42 ECH42 EAF42 ECL113 ECL113
Semiconductors (the count is only for transistors) Zerhacker Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: IID51 - Telefunken Deutschland TFK,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 134 x 95 x 240 mm / 5.3 x 3.7 x 9.4 inch
Notes Ch=II A51; mit Drucktasten.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 488.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5108)
