Concerto 8 C 488 S

Concerto 8 C 488 S; Telefunken (ID = 2620591) Radio

Concerto 8 C 488 S; Telefunken (ID = 2620592) Radio
Concerto 8 C 488 S; Telefunken (ID = 2620594) Radio Concerto 8 C 488 S; Telefunken (ID = 2620648) Radio
Concerto 8 C 488 S; Telefunken (ID = 2620593) Radio Concerto 8 C 488 S; Telefunken (ID = 2620649) Radio
Concerto 8 C 488 S; Telefunken (ID = 719550) Radio Concerto 8 C 488 S; Telefunken (ID = 719556) Radio
Concerto 8 C 488 S; Telefunken (ID = 719554) Radio Concerto 8 C 488 S; Telefunken (ID = 719549) Radio
Use red slider bar for more.
Concerto 8 C 488 S; Telefunken (ID = 2620594) Radio

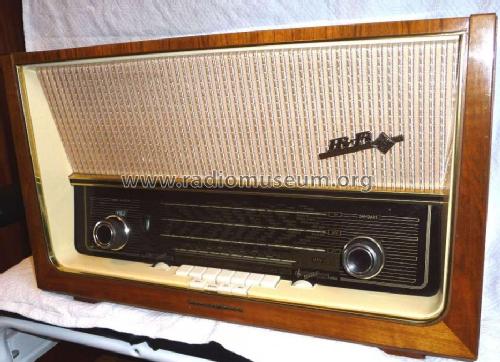

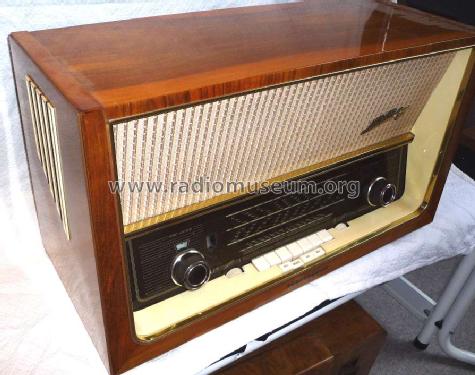

Telefunken: Concerto 8 C 488 S [Radio] ID = 2620594 1156x867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concerto 8 C 488 S, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
Semiconductors (the count is only for transistors) B250C75
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Concerto 8 C 488 S - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 650 x 370 x 280 mm / 25.6 x 14.6 x 11 inch
Notes

Exportgerät für Schweden, Modelle teilweise mit schwedischer Beschriftung.
Hinweis auf Schema und Papierhülle der Rückwand: "Für Schweden approbiert".
Siehe auch Telefunken Concerto 8.

The model C488S is similar to the German domestic model  Concerto 8 approved for the Swedish market.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Thorsten Finaske. See "Data change" for further contributors.
