- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21225

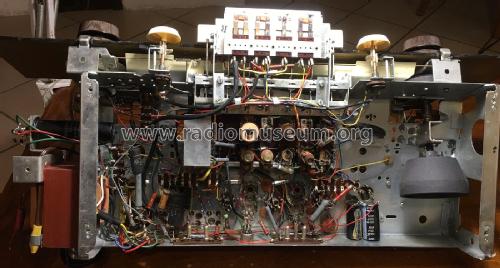

aus ebay, Verkäufer retro0_7

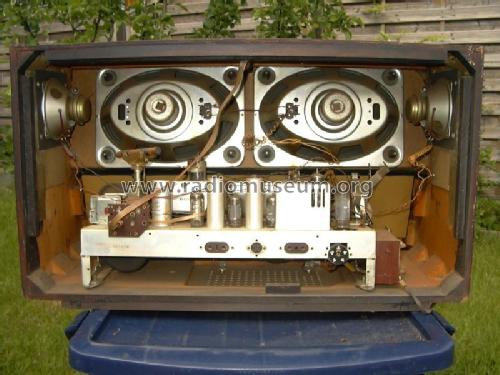

aus ebay, Verkäufer retro0_7
aus ebay, Verkäufer retro0_7
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
- Loudspeaker

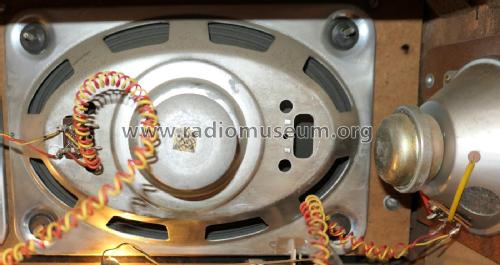

- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Concerto 8 - Telefunken Deutschland TFK,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 650 x 380 x 285 mm / 25.6 x 15 x 11.2 inch
- Notes
-
Bandbreite schaltbar, Kurzwellenlupe.
Siehe auch die Exportausführung Telefunken Concertino 8 C 488 S für Schweden.
- Net weight (2.2 lb = 1 kg)
- 14.2 kg / 31 lb 4.4 oz (31.278 lb)
- Price in first year of sale
- 459.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58
- Literature/Schematics (1)
- -- Original-techn. papers.
