FE16/53 S
Use red slider bar for more.
Telefunken: FE16/53 S [Television] ID = 1726777 282x365
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1958–1960 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 20: PCC88 PCF82 EF80 EF80 PM84 EF80 PL83 PCF82 EF80 PABC80 PL82 ECH81 ECC82 PCL82 EAA91 ECH81 PL36 PY83 DY86 AW53-80 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | OA150 OA150 OA160 OA180 Tr.Gl.=Metal-rectif. |
| Main principle | Superheterodyne (common); ZF/IF 38900 kHz |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: FE16/53 S - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Console with any shape - in general |
| Dimensions (WHD) | 625 x 926 x 553 mm / 24.6 x 36.5 x 21.8 inch |
| Notes |
CCIR B VHF Tuner. Bildschirm-Diagonale 53 cm. In Nußbaum hell Mehrpreis 10,-DM. |
| Net weight (2.2 lb = 1 kg) | 60 kg / 132 lb 2.5 oz (132.159 lb) |
| Price in first year of sale | 1'378.00 DM |
| Mentioned in | -- Original prospect or advert |

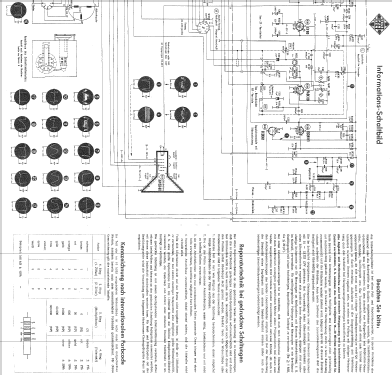

| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by a member from A. See "Data change" for further contributors.
