• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21418

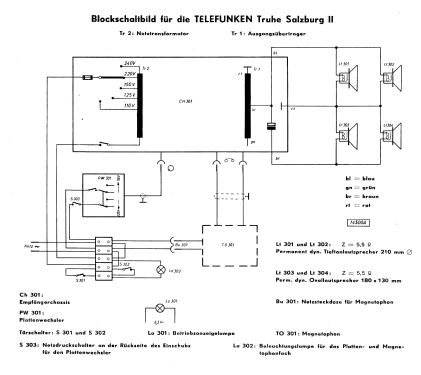

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EM80 EABC80 ECC83 EBC41 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Salzburg II [Nussb.] - Telefunken Deutschland TFK,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1240 x 850 x 450 mm / 48.8 x 33.5 x 17.7 inch

• Notes

• Phono-Chassis = TW561. Dynamic Expander (EBC41+EM80).

• Net weight (2.2 lb = 1 kg)
• 49 kg / 107 lb 14.9 oz (107.93 lb)

• Price in first year of sale
• 1,098.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58
