Vierer 542aWLK

Vierer 542aWLK; Telefunken; Wien (ID = 884983) Radio Vierer 542aWLK; Telefunken; Wien (ID = 884984) Radio

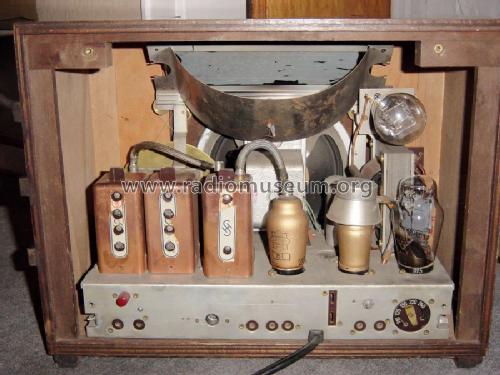

Vierer 542aWLK; Telefunken; Wien (ID = 884985) Radio
Use red slider bar for more.
Vierer 542aWLK; Telefunken; Wien (ID = 884983) Radio
Telefunken; Wien: Vierer 542aWLK [Radio] ID = 884983 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vierer 542aWLK, Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL1 AZ1
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Vierer 542aWLK - Telefunken; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 340 x 240 mm / 16.9 x 13.4 x 9.4 inch
Notes Siehe auch Telefunken 542WLK im Bakelitgehäuse.
Source of data - - Data from my own collection

Model page created by Ralf Birkenkampf. See "Data change" for further contributors.
