Weltklasse 1937 337W (T337W)

Weltklasse 1937 337W ; Telefunken; Wien (ID = 7585) Radio
Weltklasse 1937 337W ; Telefunken; Wien (ID = 1856665) Radio Weltklasse 1937 337W ; Telefunken; Wien (ID = 1856663) Radio
Weltklasse 1937 337W ; Telefunken; Wien (ID = 302991) Radio Weltklasse 1937 337W ; Telefunken; Wien (ID = 302988) Radio
Weltklasse 1937 337W ; Telefunken; Wien (ID = 302993) Radio Weltklasse 1937 337W ; Telefunken; Wien (ID = 302989) Radio
Weltklasse 1937 337W ; Telefunken; Wien (ID = 324275) Radio Weltklasse 1937 337W ; Telefunken; Wien (ID = 324276) Radio
Weltklasse 1937 337W ; Telefunken; Wien (ID = 324277) Radio Weltklasse 1937 337W ; Telefunken; Wien (ID = 706992) Radio
Use red slider bar for more.

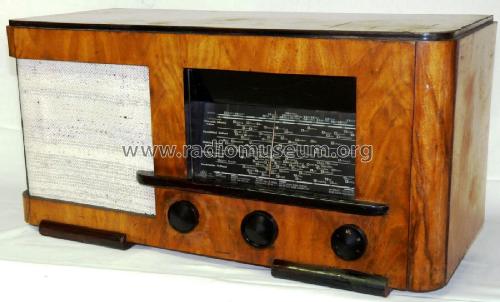

Weltklasse 1937 337W ; Telefunken; Wien (ID = 1856665) Radio
Telefunken; Wien: Weltklasse 1937 337W [Radio] ID = 1856665 1400x848
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklasse 1937 337W (T337W), Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1936/1937 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 AB2 AL4 AZ1
Main principle Super-Heterodyne (Super in general); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Weltklasse 1937 337W - Telefunken; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 260 x 250 mm / 21.3 x 10.2 x 9.8 inch
Notes

See also Telefunken 530WK.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 385.00 öS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

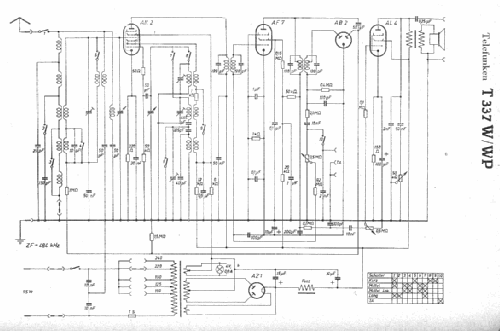

Literature/Schematics (1) Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Telefunken; Wien
Here you find 108 models, 94 with images and 79 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
