Marold 4310A
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1958/1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 96444
-
- Brand: Supraphon

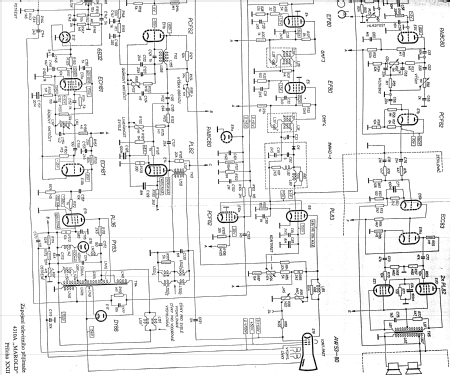

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PCC84 PCF82 EF80 EF80 EF80 PL83 PCF82 EF80 PABC80 ECC83 PL82 PL82 PCF82 PCF82 PL82 6B32 ECH81 PL36 PY83 DY86 EZ81 AW53-80
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 120/220 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 20 cm = 7.9 inch
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Marold 4310A - Tesla; Praha, Bratislava etc.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 6 VHF-channels: coils either for channels 1, 2, 6, 8, 9, 10 or for 1, 2, 6, 7, 8, 9.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
