Linear T304
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1965 ? | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 19: ECC88 ECF80 EC86 EC86 EF80 EF183 EF183 EF184 EL84 ECC82 ECL85 EL84 EABC80 EF80 ECC82 6DQ6A 6AU4GTA 1G3GT 23CP4 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 45750/40250 kHz |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 125; 140; 160; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Linear T304 - Voxson F.A.R.E.T., Roma |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 730 x 530 x 360 mm / 28.7 x 20.9 x 14.2 inch |
| Notes | Cinescopio da 23" con deflessione a 110° e focalizzazione elettrostatica automatica. Commutazione a tastiera VHF-UHF. |
| Net weight (2.2 lb = 1 kg) | 33 kg / 72 lb 11 oz (72.687 lb) |

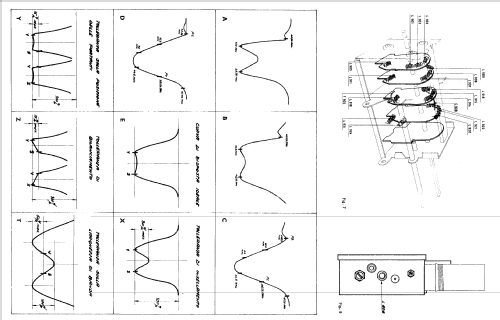

| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Eduard Abfalterer. See "Data change" for further contributors.
