Sideral 429

Sideral 429; Voxson F.A.R.E.T., (ID = 1102545) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102547) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102549) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102551) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102552) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102553) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102556) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102557) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102560) Television

Sideral 429; Voxson F.A.R.E.T., (ID = 1102561) Television
Use red slider bar for more.
Sideral 429; Voxson F.A.R.E.T., (ID = 1102545) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1964 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6DS4 9CG8A PC88 PC86 EF183 EF183 EF184 PL83 EF80 PCL86 ECC82 ECC82 PCL85 EF80 PL36 PY88 1J3 A59-11W
Main principle Superheterodyne (common); ZF/IF 45750/40250 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Sideral 429 - Voxson F.A.R.E.T., Roma
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 740 x 520 x 410 mm / 29.1 x 20.5 x 16.1 inch
Notes Il televisore mod.429 può essere dotato a richiesta del comando a distanza ad ultrasuoni Spatial Control mod. SC85 per il cambio del programma (commutazione VHF-UHF).
Gruppo sintonizzatore VHF a 13 posizioni (tutti i canali italiani più cinque a riserva).
Gruppo sintonizzatore UHF a due valvole.
Net weight (2.2 lb = 1 kg) 31 kg / 68 lb 4.5 oz (68.282 lb)

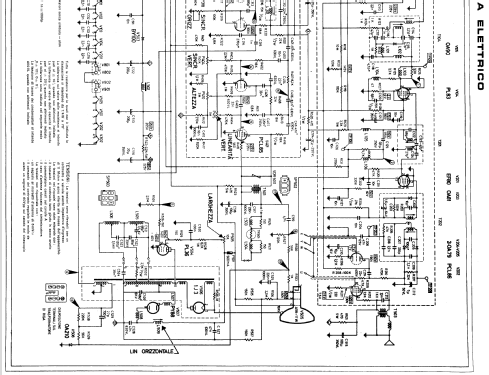

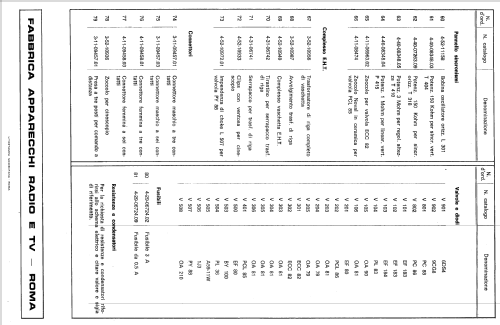

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
