• Country
• Netherlands

• Manufacturer / Brand
• Waldorp, N.V. Ned. Instrumentenfabriek, Den Haag

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84079

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• AK2 AF3 AF3 AB2 4662 ABC1 AL4 1823 or AZ1

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 130; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

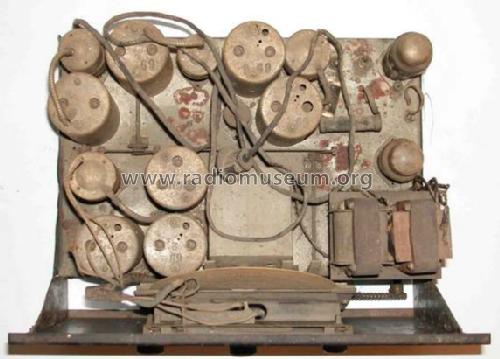

• Model: C69V - Waldorp, N.V. Ned.

• Shape
• Chassis only or for «building in»

• Notes

• Glimm-Abstimmanzeiger Philips 4662. Regelbare Bandbreite.
  Auf Schema mit "Achtkrings Super met Continu-variable Bandbreedte" bezeichnet.
  MW/LW mit Eingangsbandfilter.

  Dieses Modell ist eine spezielle Ausführung für Drahtfunk. Siehe auch das Waldorp Modell 69V.

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
