• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175

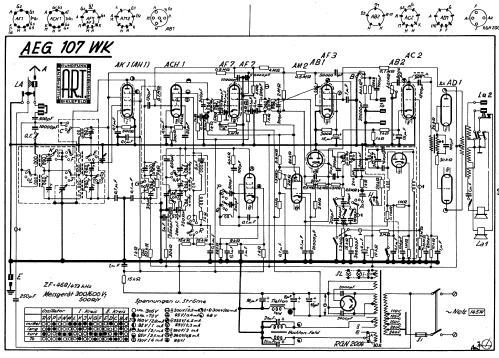

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• AH1 ACH1 AF7 AB2 AM2 AF7 AB1 AF3 AC2 AD1 AD1 RGN2004

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Der große AEG 107WK - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 700 x 470 x 295 mm / 27.6 x 18.5 x 11.6 inch

• Notes

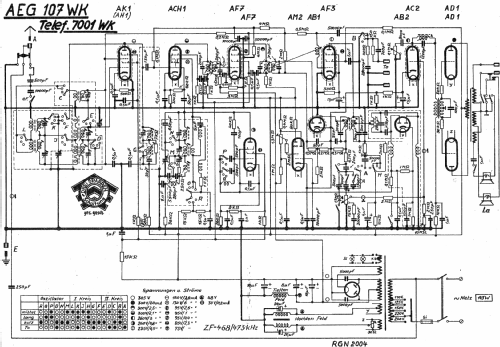

• Parallelgerät zum Telefunken Spitzensuper 7001WK.

• Price in first year of sale
• 612.00 RM

• Source of data

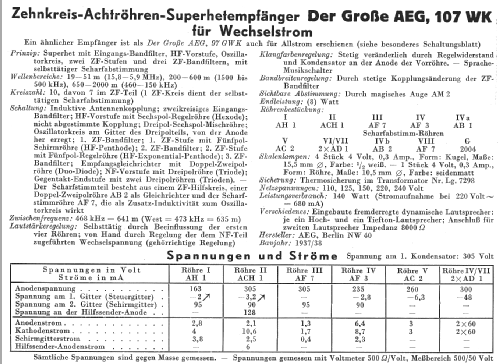

• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Preisl. Otto Gruoner 1937
