Arkansas 4431; Blaupunkt Ideal, (ID = 157421) Radio

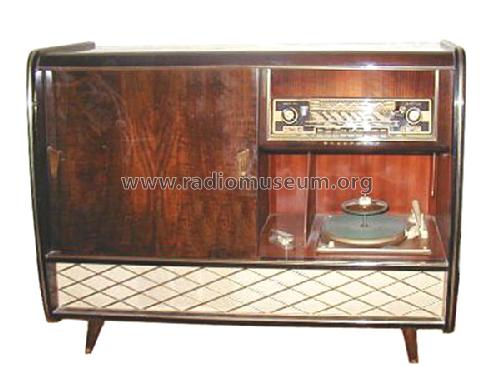

Blaupunkt Ideal,: Arkansas 4431 [Radio] ID = 157421 600x440
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arkansas 4431, Blaupunkt (Ideal), Berlin, später Hildesheim:
aus Ebay Verk. gika01 Nr. 7565008161

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 EF89 ECH81 EF89 EM80 EABC80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10,7 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 3 Loudspeakers / Ø 26 cm = 10.2 inch
Power out
from Radiomuseum.org Model: Arkansas 4431 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1190 x 910 x 454 mm / 46.9 x 35.8 x 17.9 inch
Notes Katalog und Prospekte zeigen oft andere Lautsprecherbespannung als reale Modelle.
Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)
Collectors' prices
External source of data Wiesmüller
Source of data Lange, Schaltungen der Funkindustrie


All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Here you find 3144 models, 2800 with images and 2134 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Blaupunkt Ideal,: Arkansas 4431
Threads: 1 | Posts: 3
Hits: 1899     Replies: 2
blaupunkt: 4431; Arkansas
David Schulman
11.Feb.09
  1

Hopefully, I have a simple question... Does anyone know how the chassis is removed from this unit? From the front or the back? I don't want to tear things up too bad if there is an easy way to do it. Thanks for your suggestions. David

Hilmer Grunert
13.Feb.09
  2

Hello Mr. Schulman,

The chassis is to remove from backside. Screws are turning at front side over the turntable. Note: the rubbers between chassis and wood are most adhesive. You must lever them softly with a Screw driver.

Greetings

Hilmer Grunert

David Schulman
15.Feb.09
  3

Thank you so much for the information. Removed the chassis without any problems.

David


Blaupunkt Ideal,: Arkansas 4431
End of forum contributions about this model
