Arkansas 58 4431 Ch= 2430 S u. N Türen
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323516
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superhet with RF-stage; ZF/IF 460/10700 kHz; Export model
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Arkansas 58 4431 Ch= 2430 S u. N [Türen] - Blaupunkt Ideal, Berlin,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1190 x 910 x 454 mm / 46.9 x 35.8 x 17.9 inch
- Notes
-
Rundfunk-Chassis = Virginia 2430 (aber Ausführung für Schweden und Norwegen)

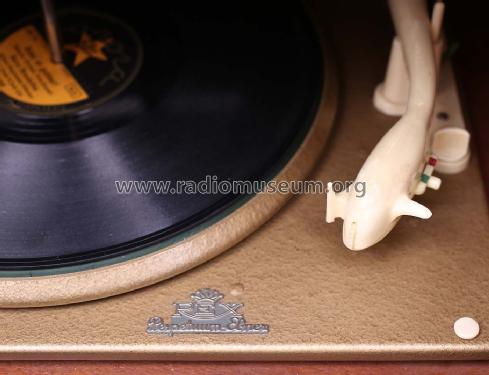

Phono-Chassis = Perpetuum-Ebner Rex A2 KW-Bereiche.
3 Lautsprecher: 1 oval 26 x 18 cm, 2 rund 10 cm.
- Net weight (2.2 lb = 1 kg)
- 44.5 kg / 98 lb 0.3 oz (98.018 lb)
- Mentioned in
- - - Manufacturers Literature
