• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1960/1961

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 102745

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

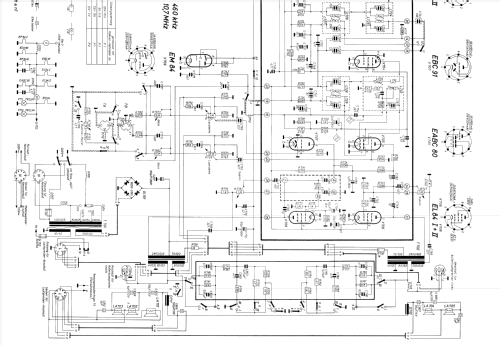

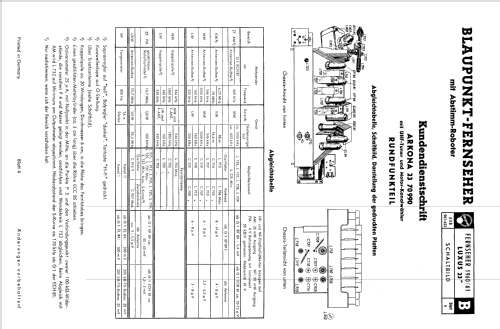

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 30

• Valves / Tubes
• ECC85 EF89 ECH81 EF89 EM84 EABC80 EBC91 EL84 EL84 PCC88 PCF82 PC86 PC86 PCF82 EF80 EF80 PABC80 PL82 PC92 EF80 EF80 EF80 PCL84 ECH81 EF80 PCL82 ECC81 PY88 PL36 DY86 AW59-90

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Arkona II Stereo 70990 - Blaupunkt Ideal, Berlin,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1280 x 940 x 490 mm / 50.4 x 37 x 19.3 inch

• Notes

• Fernseh-Chassis = Sevilla mit UHF-Tuner und Motor-Kanalwahl
  Rundfunk-Chassis = Riviera-Vollstereo
  Phono-Chassis = Perpetuum-Ebner Rex de Luxe Stereo

  Anschluss für Fernbedienung FG254.

• Net weight (2.2 lb = 1 kg)
• 84 kg / 185 lb 0.4 oz (185.022 lb)

• Price in first year of sale
• 1,795.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Mentioned in

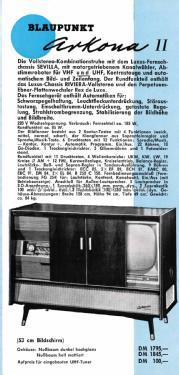

• -- Original-techn. papers. (Blaupunkt Hausmitteilungen 11/1960)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
